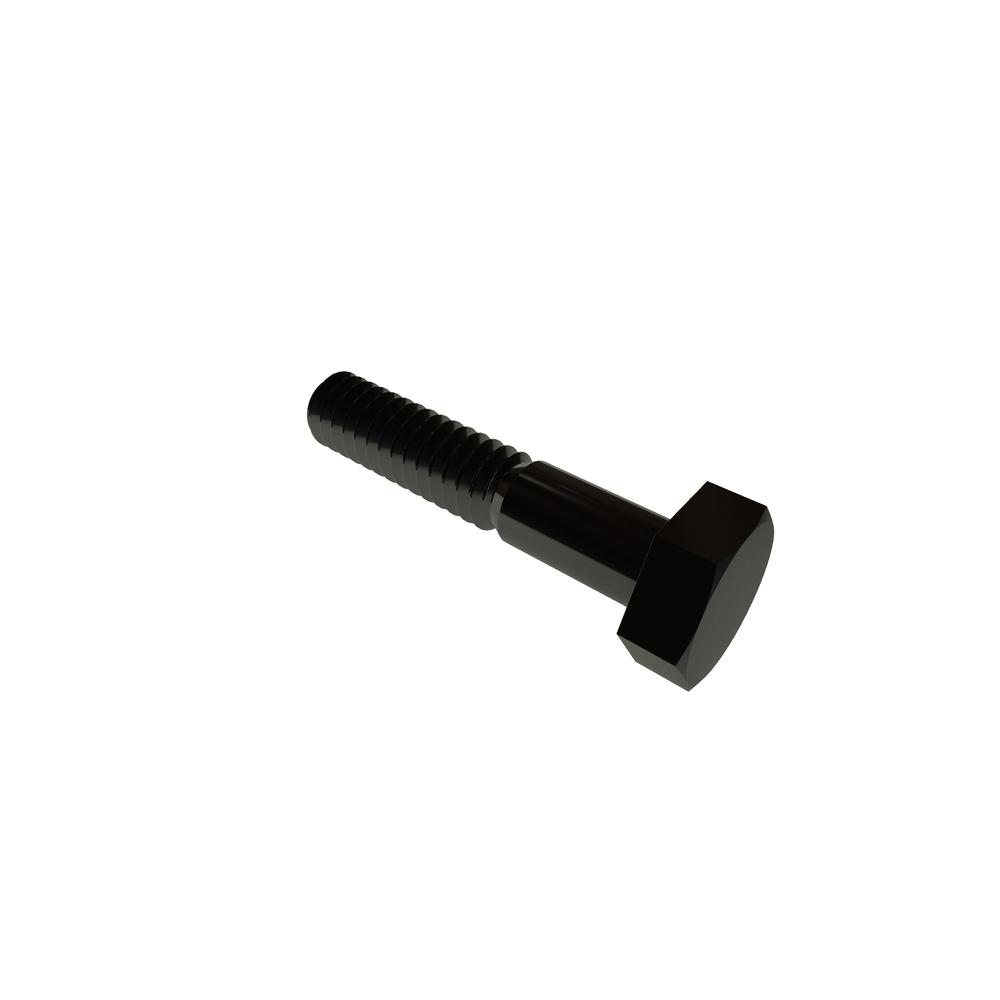

Image for reference purposes only. Actual product may vary.
25C125HHD2R
1/4-20 X 1 1/4 HX HD GR 2 ZN CR3
Alternate Codes: 18-2204-17, 231-0001-06, 231-0014-00, 25C125HHD2t, 91236A544
1/4-20 X 1 1/4 Hex Head Partial Thread Grade 2 Steel Zinc Plated
Pricing per Unit
| 1-249 pcs |
|---|
| $0.206 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Meets (Standard) | ASME B18.2.1 |
| Length | 1.25in |
| Thread Size | 1/4-20 |
| Head Height (Min.) | 0.150in |
| Body Diameter (Max.) | 0.260in |
| Head Height (Max.) | 0.188in |
| Additional Industry Cross Reference | 91236A544 |
| Body Diameter (Min.) | 0.237in |
| Nominal Thread Size | 0.250in |
| Width Across Flat (Min.) | 0.425in |
| Thread Type | Unified Coarse Thread (UNC) |
| Material | Steel |
| Width Across Flat (Max.) | 0.438in |
| RoHS | Compliant |
| Finish | Zinc Clear |
| Head Type | Hex |
| Grade | 2 |
| Brand | VARIED |
| Units | Inch |
