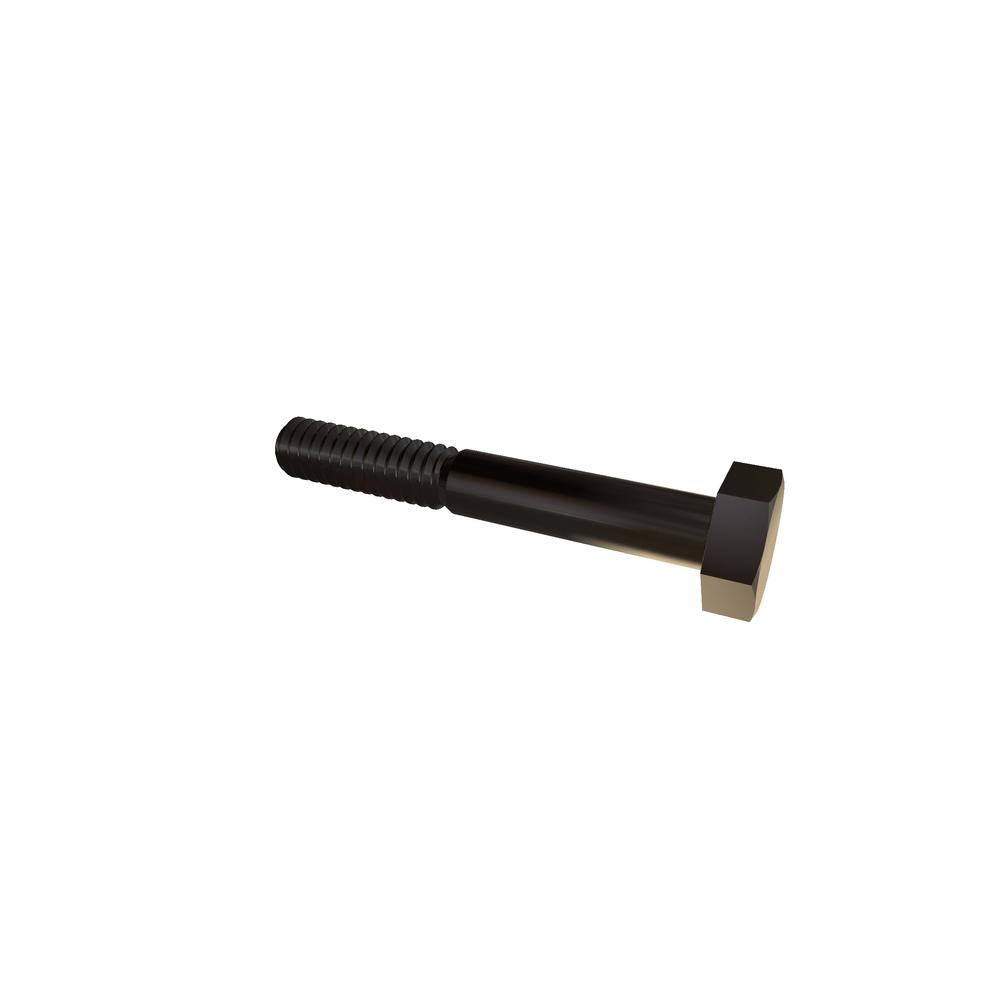

25C175HHD3
1/4-20 X 1 3/4 HX HD 316 SST RoHS
Alternate Codes: 100-02-356
1/4-20 X 1 3/4 HEX Head 316 Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.826 | $0.525 | $0.482 | $0.445 | $0.375 | Larger Quantities |
In Stock
| Thread Size | 1/4-20 |
| Material | 316 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Head Type | Hex |
| Body Diameter (Min.) | 0.237in |
| Nominal Thread Size | 0.250in |
| Grade | Other |
| Brand | VARIED |
| Additional Industry Cross Reference | 93190A547 |
| Length | 1.75in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.1 |
| Body Diameter (Max.) | 0.260in |
| Head Height (Max.) | 0.188in |
| Head Height (Min.) | 0.150in |
| Width Across Flat (Max.) | 0.438in |
| Width Across Flat (Min.) | 0.425in |
