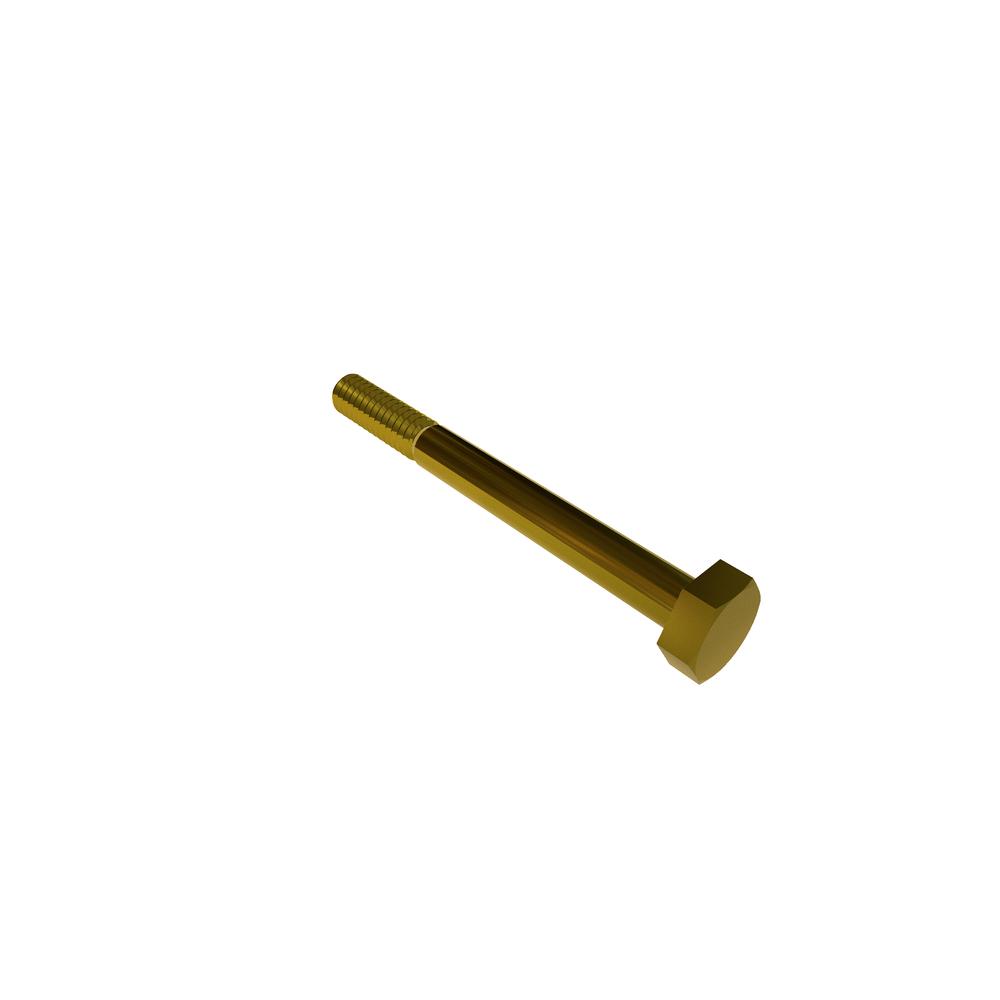

25C250HHD8/YR
1/4-20 X 2 1/2 HX HD GR 8 ZN YLW RoHS
Alternate Codes: 25C250HHD8/Y
Pricing per Unit
| 1-99 pcs | 100-249 pcs |
|---|---|
| $0.921 | $0.586 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 1/4-20 |
| Material | Alloy Steel |
| Finish | Zinc Yellow |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Head Type | Hex |
| Body Diameter (Min.) | 0.237in |
| Nominal Thread Size | 0.250in |
| Grade | 8 |
| Brand | VARIED |
| Length | 2.50in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.1 |
| Body Diameter (Max.) | 0.260in |
| Head Height (Max.) | 0.188in |
| Head Height (Min.) | 0.150in |
| Width Across Flat (Max.) | 0.438in |
| Width Across Flat (Min.) | 0.425in |
