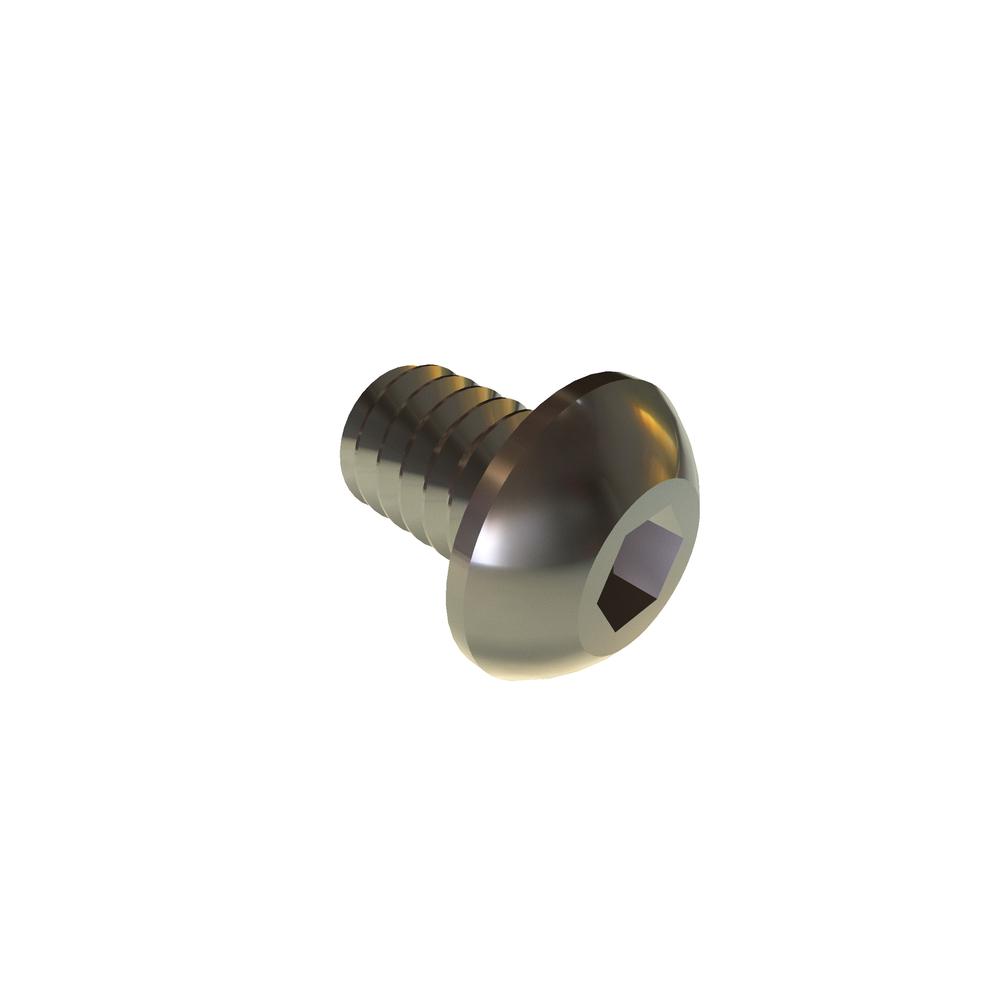

25C37BHCS/P
1/4-20 X 3/8 BUT SOC PATCH SST RoHS
Alternate Codes: 93310A535
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.630 | $0.346 | $0.289 | $0.247 | $0.204 | Larger Quantities |
In Stock
| Thread Size | 1/4-20 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 0.280in |
| Fillet Transition Diameter (Max.) | 0.290in |
| Head Side Height (Ref.) | 0.031in |
| Self Locking Type | Patchlock |
| Brand | VARIED |
| Additional Industry Cross Reference | 93310A535 |
| Key Engagement (Min.) | 0.087in |
| Length | 3/8in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.437in |
| Head Diameter (Min.) | 0.419in |
| Head Height (Max.) | 0.132in |
| Head Height (Min.) | 0.122in |
| Hex Socket Size | 0.156in |
