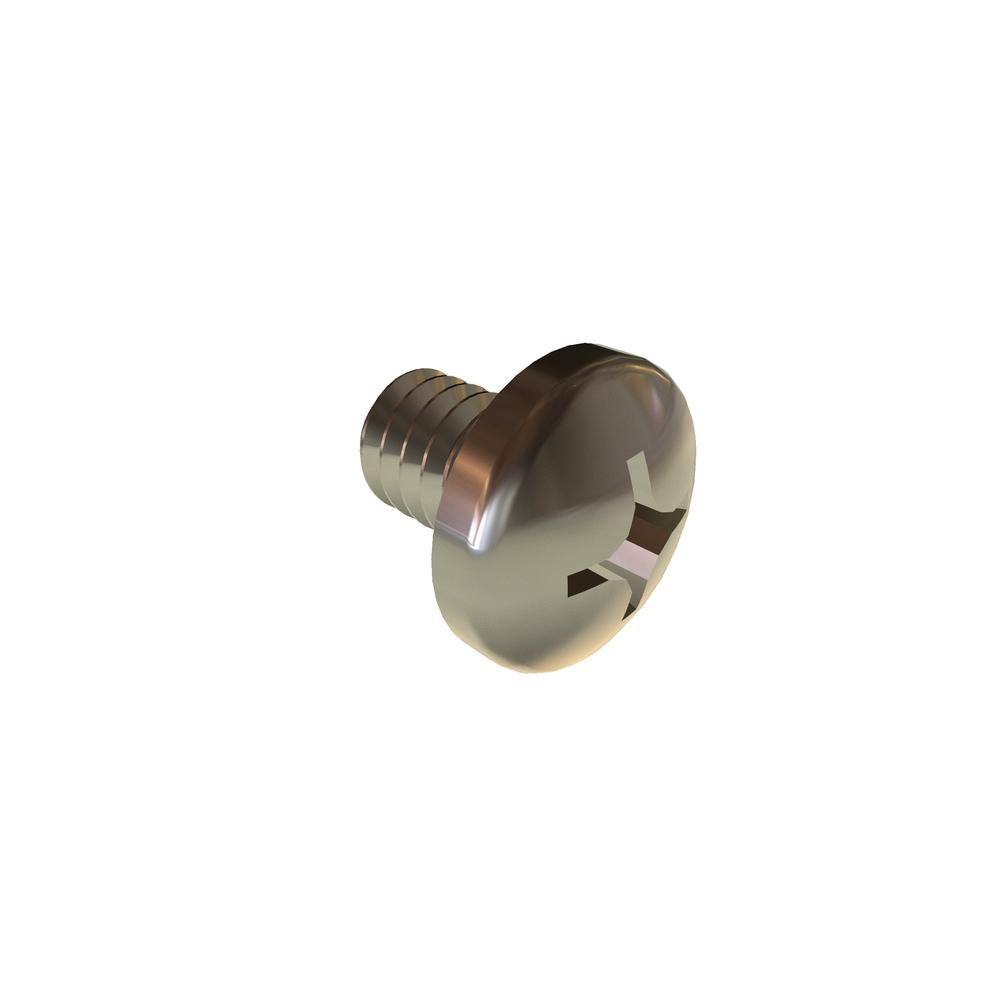

25C37PPMS
1/4-20 X 3/8 PH PAN SST RoHS
Alternate Codes: MS51957-77
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.531 | $0.292 | $0.243 | $0.209 | $0.172 | Larger Quantities |
In Stock
| Thread Size | 1/4-20 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 3 |
| Recess Diameter | 0.274in |
| Head Radius (Min.) | 0.035in |
| Recess Depth (Min.) | 0.118in |
| Recess Depth (Max.) | 0.144in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91772A535 |
| Length | 0.37in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.492in |
| Head Diameter (Min.) | 0.473in |
| Head Height (Max.) | 0.175in |
| Head Height (Min.) | 0.162in |
