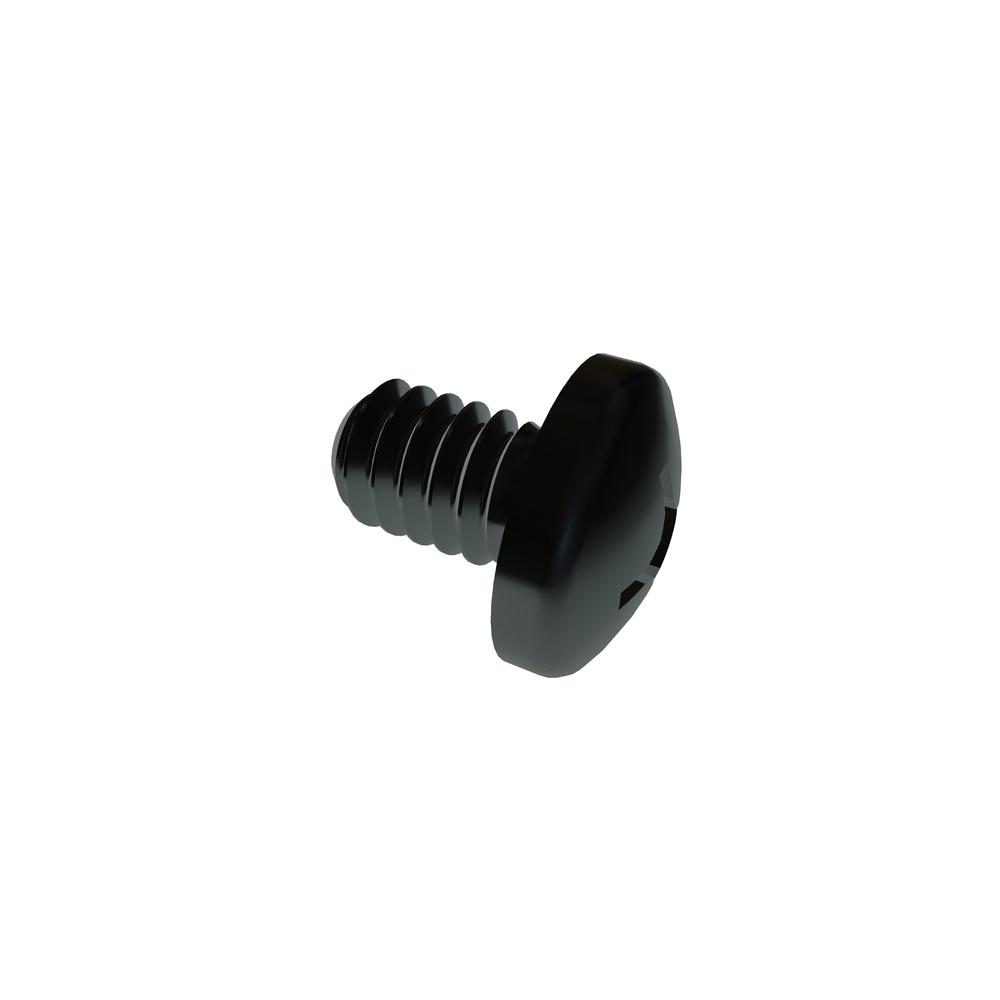

25C37PPMZR
1/4-20 X 3/8 PH PAN STL ZN CR3
Alternate Codes: 047619, 25C37PPMZt, 90272A535
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.216 | $0.129 | $0.108 | $0.088 | $0.078 | Larger Quantities |
In Stock
| Thread Size | 1/4-20 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 3 |
| Recess Diameter | 0.274in |
| Head Radius (Min.) | 0.035in |
| Recess Depth (Min.) | 0.118in |
| Recess Depth (Max.) | 0.144in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90272A535 90272A535 |
| Length | 0.37in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.492in |
| Head Diameter (Min.) | 0.473in |
| Head Height (Max.) | 0.175in |
| Head Height (Min.) | 0.162in |
