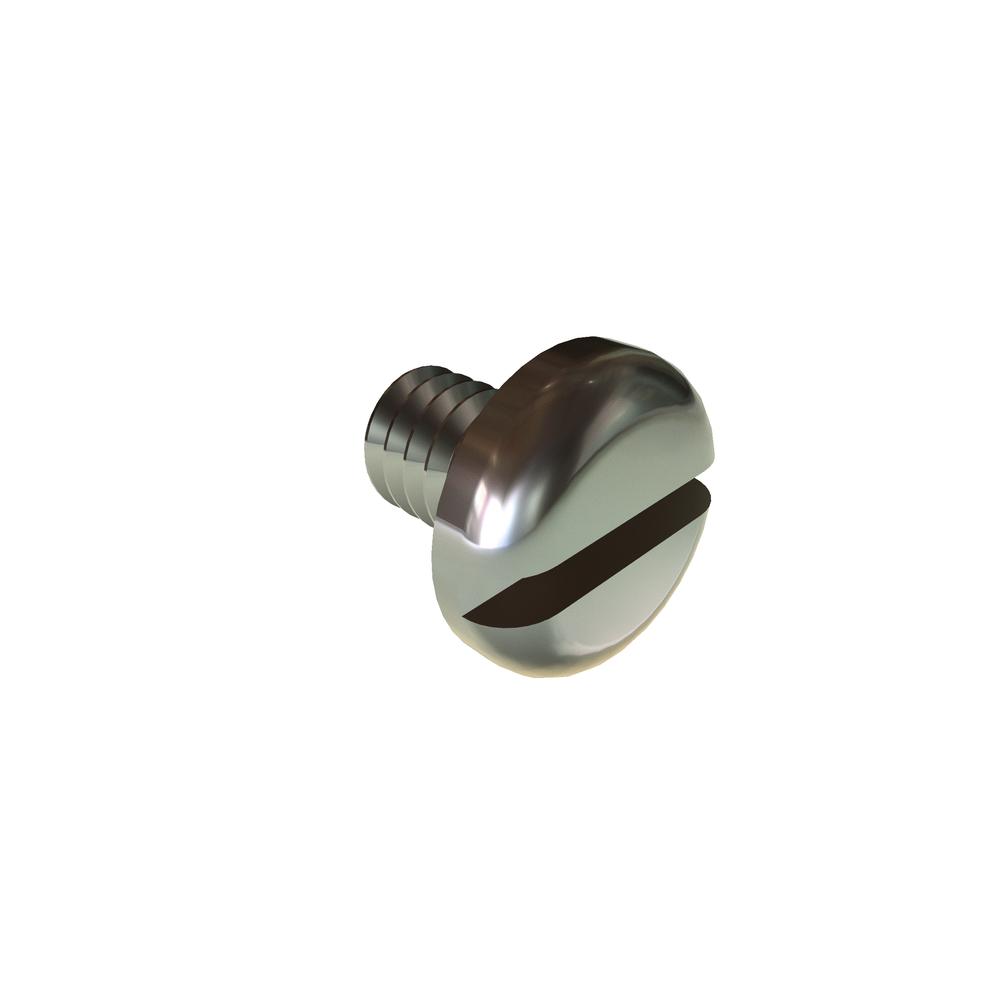

1/4-20 X 3/8 SLOT PAN HD SST RoHS
25C37SPMS
| Item Id | 25C37SPMS |
| Description | 1/4-20 X 3/8 SLOT PAN HD SST RoHS |
| Alternate Codes | 2825-3504 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91792A535 |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Plain |
| Head Diameter (Max.) | 0.492in |
| Head Diameter (Min.) | 0.473in |
| Head Height (Max.) | 0.144in |
| Head Height (Min.) | 0.130in |
| Head Radius (Min.) | 0.087in |
| Head Type | Pan |
| Length | 0.37in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.250in |
| RoHS | Compliant |
| Slot Depth (Max.) | 0.087in |
| Slot Depth (Min.) | 0.070in |
| Slot Width (Max.) | 0.075in |
| Slot Width (Min.) | 0.064in |
| Thread Size | 1/4-20 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
