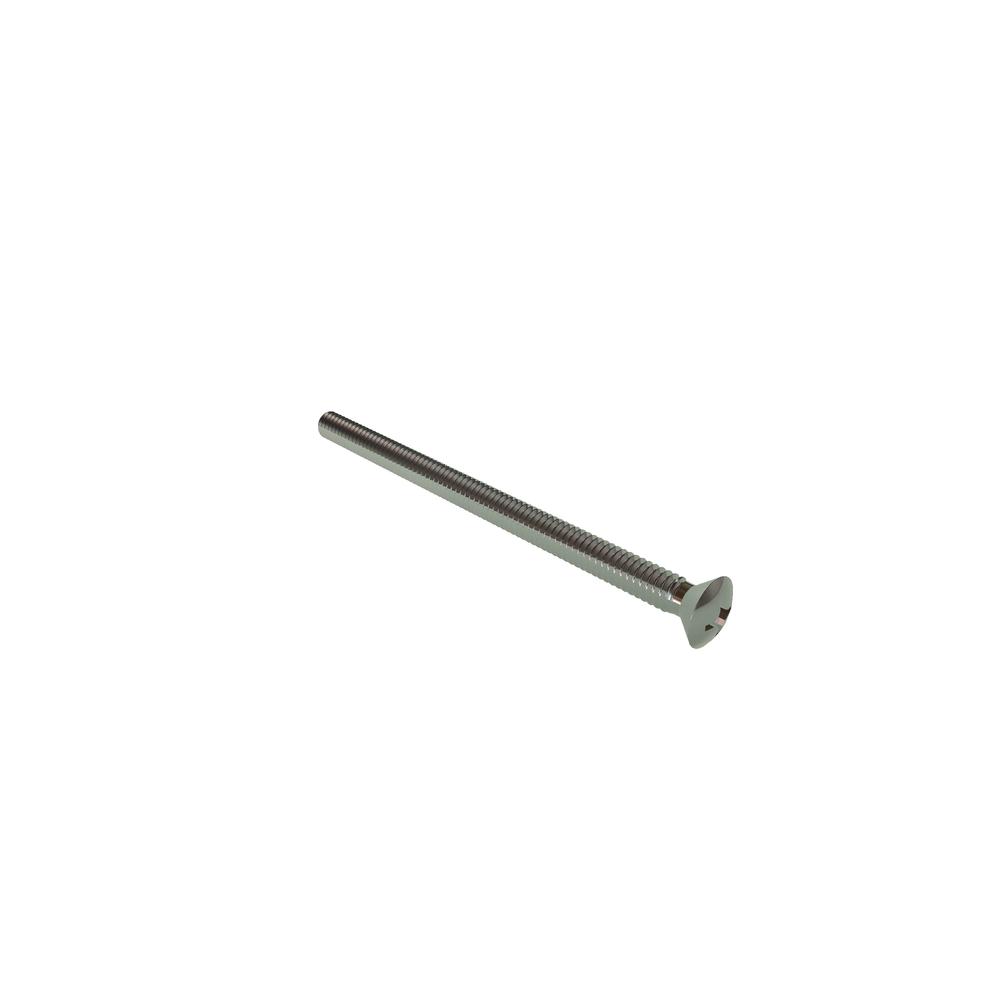

25C400POMS
1/4-20 X 4 PHIL OVAL SST RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 1/4-20 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Head Type | Oval |
| Drive Type | Phillips |
| Recess Diameter | 0.284in |
| Slot Depth (Min.) | 0.112in |
| Slot Depth (Max.) | 0.136in |
| Slot Width (Min.) | 0.064in |
| Slot Width (Max.) | 0.075in |
| Head Side Height (Ref.) | 0.153in |
| Head Height | 0.232in |
| Recess Depth (Min.) | 0.131in |
| Recess Depth (Max.) | 0.156in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91802A572 |
| Length | 4.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.477in |
| Head Diameter (Min.) | 0.442in |
| Crown Height | 0.079in |
