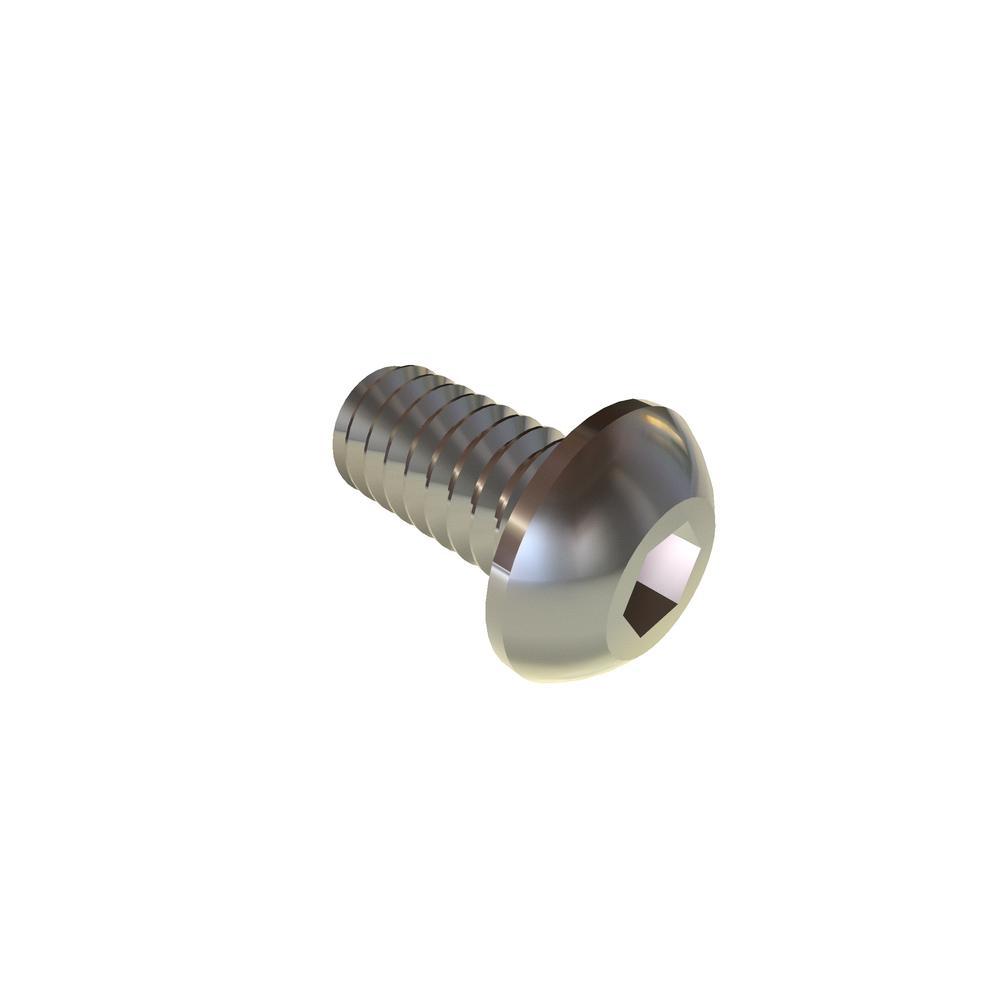

1/4-20 X 1/2 BUT SOC SST RoHS
25C50BHCS
| Item Id | 25C50BHCS |
| Description | 1/4-20 X 1/2 BUT SOC SST RoHS |
| Alternate Codes | 005258, 12-0000299, 2806-0520-08, 2825-3606, 613-5047, P2426 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92949A537 |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Max.) | 0.290in |
| Fillet Transition Diameter (Min.) | 0.280in |
| Finish | Plain |
| Head Diameter (Max.) | 0.437in |
| Head Diameter (Min.) | 0.419in |
| Head Height (Max.) | 0.132in |
| Head Height (Min.) | 0.122in |
| Head Side Height (Ref.) | 0.031in |
| Head Type | Button |
| Hex Socket Size | 0.156in |
| Key Engagement | 0.087in |
| Length | 1/2in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.3 |
| Nominal Diameter | 0.250in |
| RoHS | Compliant |
| Thread Size | 1/4-20 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
