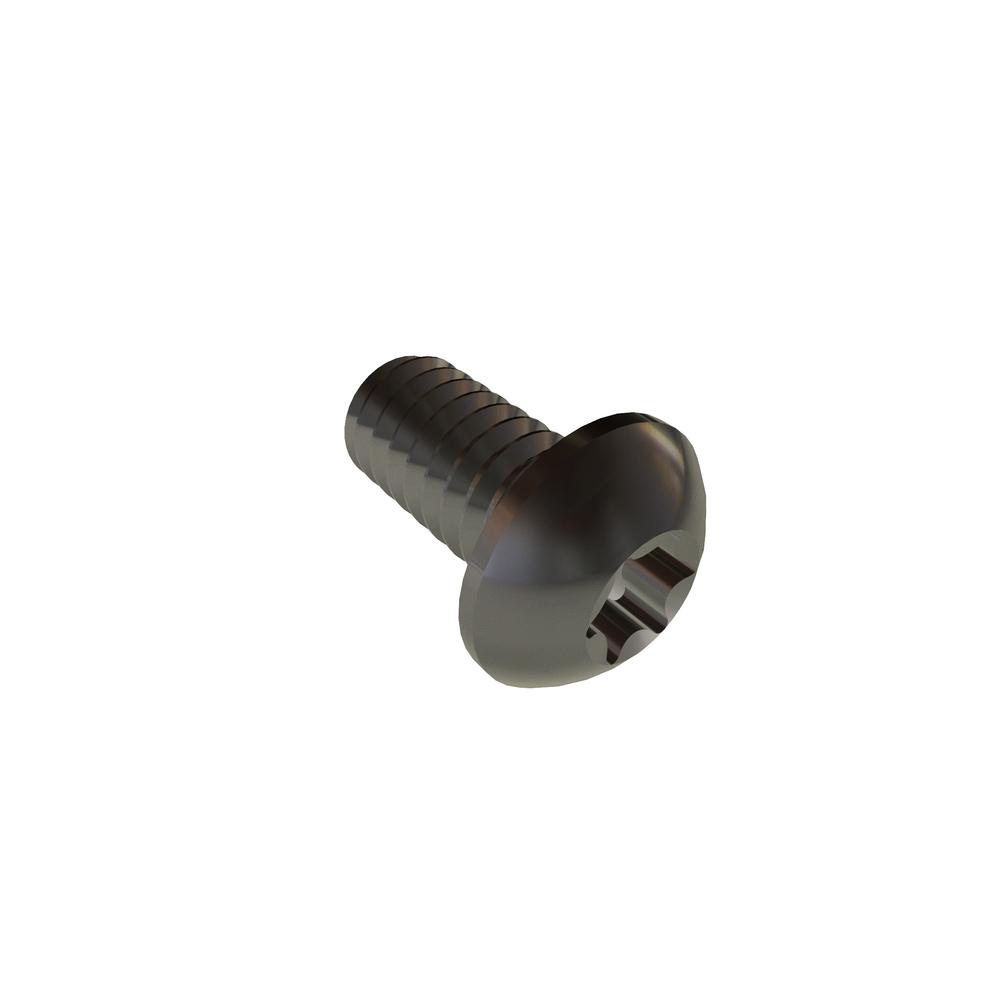

25C50BHXSS
1/4-20 X 1/2 BUT HD TORX SST RoHS SI PLT
Alternate Codes: N/A
PLATED RoHS
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $4.238 | $3.260 | $2.649 | $2.355 | $2.119 | Larger Quantities |
In Stock
| Thread Size | 1/4-20 |
| Material | Stainless Steel |
| Finish | Silver Plated |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Head Type | Button |
| Drive Type | Torx Socket |
| Drive Size | T30 |
| Fillet Transition Diameter (Min.) | 0.280in |
| Fillet Transition Diameter (Max.) | 0.290in |
| Head Side Height (Ref.) | 0.031in |
| Key Engagement | 0.087in |
| Torx Socket Size | 0.216in |
| Brand | VARIED |
| Length | 1/2in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.437in |
| Head Diameter (Min.) | 0.419in |
| Head Height (Max.) | 0.132in |
| Head Height (Min.) | 0.122in |
