25C50CARS

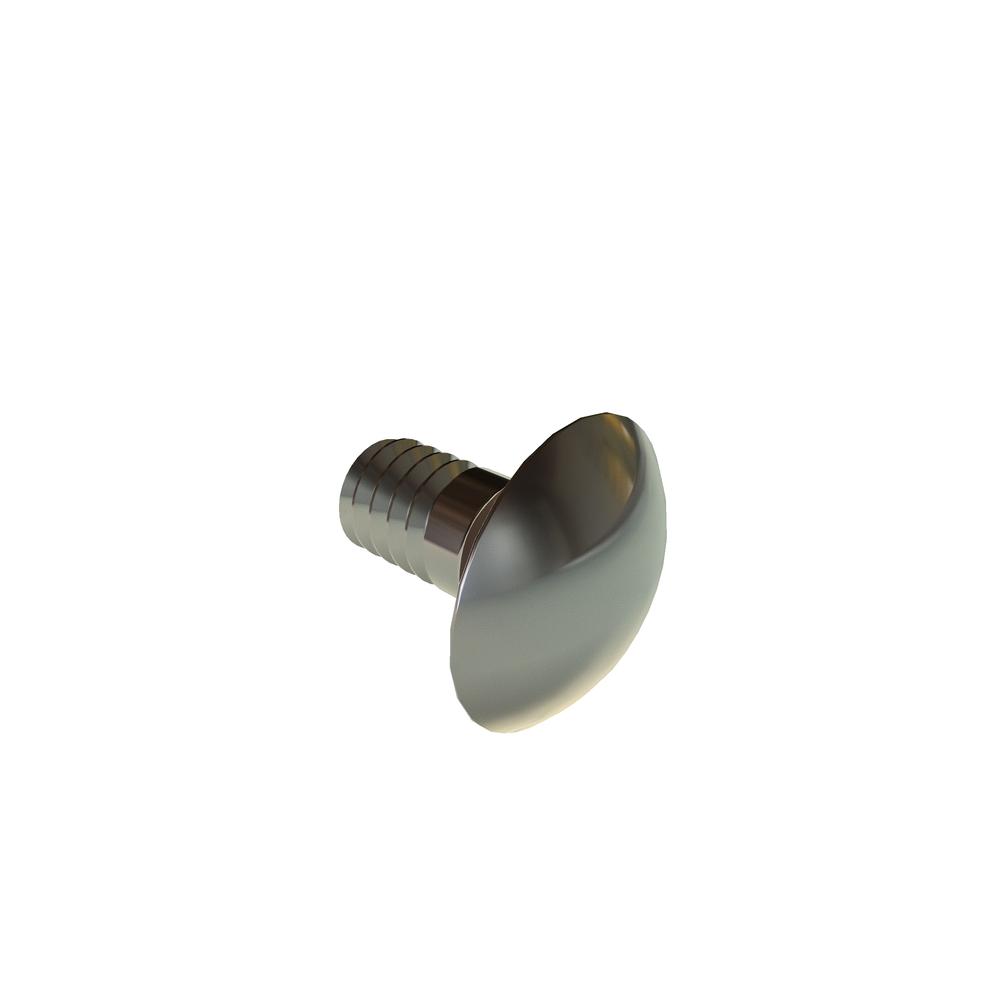

1/4-20 X 1/2 CARRIAGE BOLT SST RoHS
Alternate Codes: 92356A537
1/4-20 X 1/2 CARRIAGE BOLT Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.356 | $0.187 | $0.148 | $0.137 | $0.115 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 1/4-20 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Body Diameter (Min.) | 0.213in |
| Grade | Other |
| Corner radius | 0.031in |
| Square Depth (Min.) | 0.125in |
| Square Depth (Max.) | 0.156in |
| Square Width (Min.) | 0.245in |
| Square Width (Max.) | 0.260in |
| Fillet Radius | 0.031in |
| Brand | VARIED |
| Type | Carriage Bolt |
| Additional Industry Cross Reference | 92356A537 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.5 |
| Body Diameter (Max.) | 0.260in |
| Head Diameter (Max.) | 0.594in |
| Head Diameter (Min.) | 0.563in |
| Head Height (Max.) | 0.145in |
| Head Height (Min.) | 0.125in |
| Thread Length | 0.500in |
| Total Length | 0.50in |
