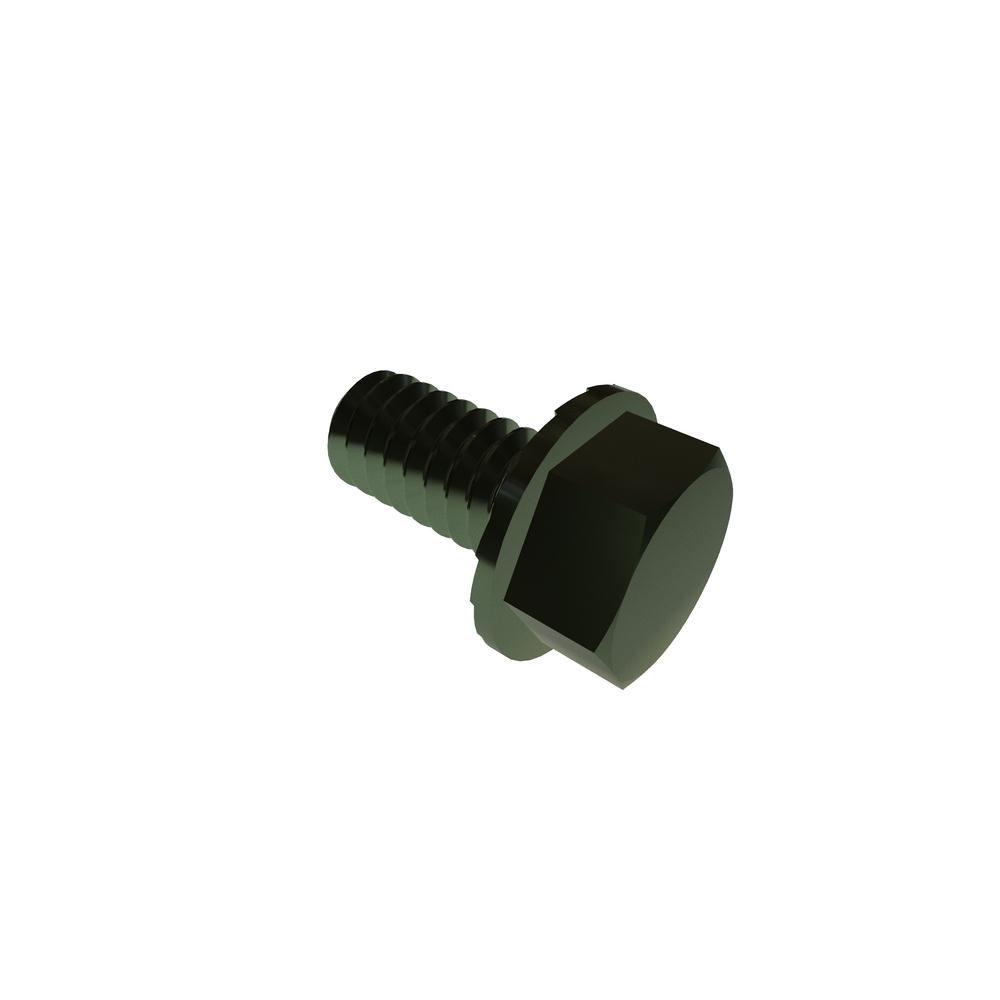

25C50HWH5R/W
1/4-20 X 1/2 HWH WHIZLOK GR 5 ZN CR3
Alternate Codes: 92323A512
1/4-20 X 1/2 Hex Washer Head WHIZLOK Grade 5 steel Zinc plate RoHS3
Pricing per Unit
| 1-99 pcs |
|---|
| $0.616 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 1/4-20 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Thread Size | 0.250in |
| Grade | 5 |
| Thickness (Min.) | 0.030in |
| Brand | VARIED |
| Type | Whizlok Hex Washer Bolts |
| Additional Industry Cross Reference | 92323A512 |
| Length | 0.50in |
| Meets (Standard) | ASME B18.6.3 |
| Head Height (Max.) | 0.190in |
| Head Height (Min.) | 0.172in |
| Width Across Flat (Max.) | 0.375in |
| Width Across Flat (Min.) | 0.367in |
| Thickness (Max.) | 0.050in |
| Washer Diameter (Max.) | 0.520in |
| Washer Diameter (Min.) | 0.480in |
