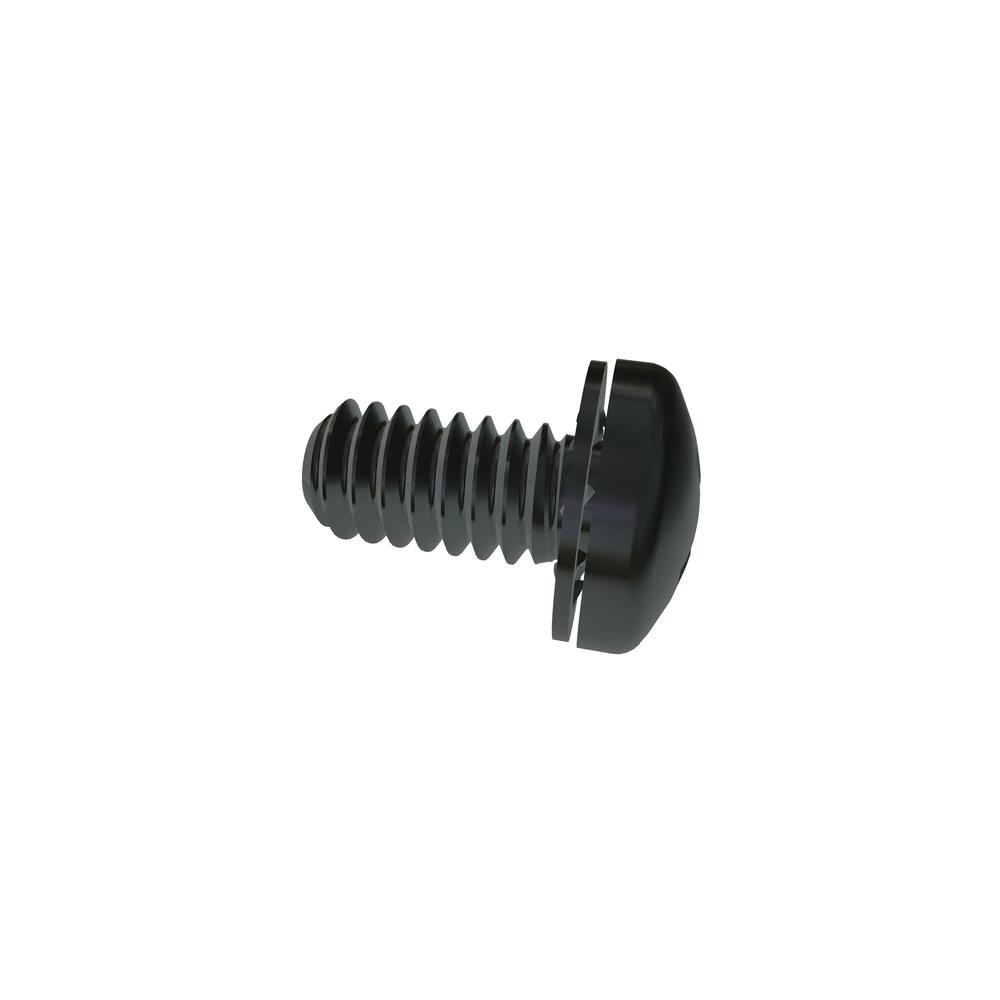

25C50PPIZR
1/4-20 X 1/2 PH PAN INT SEMS STL ZN CR3
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 1/4-20 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.028in |
| Lock Washer Outside Diameter (Min.) | 0.466in |
| Lock Washer Outside Diameter (Max.) | 0.478in |
| Washer Type | Internal Tooth Lock Washer |
| Drive Size | 3 |
| Penetration Depth (Min.) | 0.118in |
| Penetration Depth (Max.) | 0.144in |
| Recess Diameter | 0.274in |
| Head Radius (Min.) | 0.035in |
| Brand | VARIED |
| Length | 1/2in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.492in |
| Head Diameter (Min.) | 0.473in |
| Head Height (Max.) | 0.175in |
| Head Height (Min.) | 0.162in |
| Lock Washer Thickness (Min.) | 0.023in |
