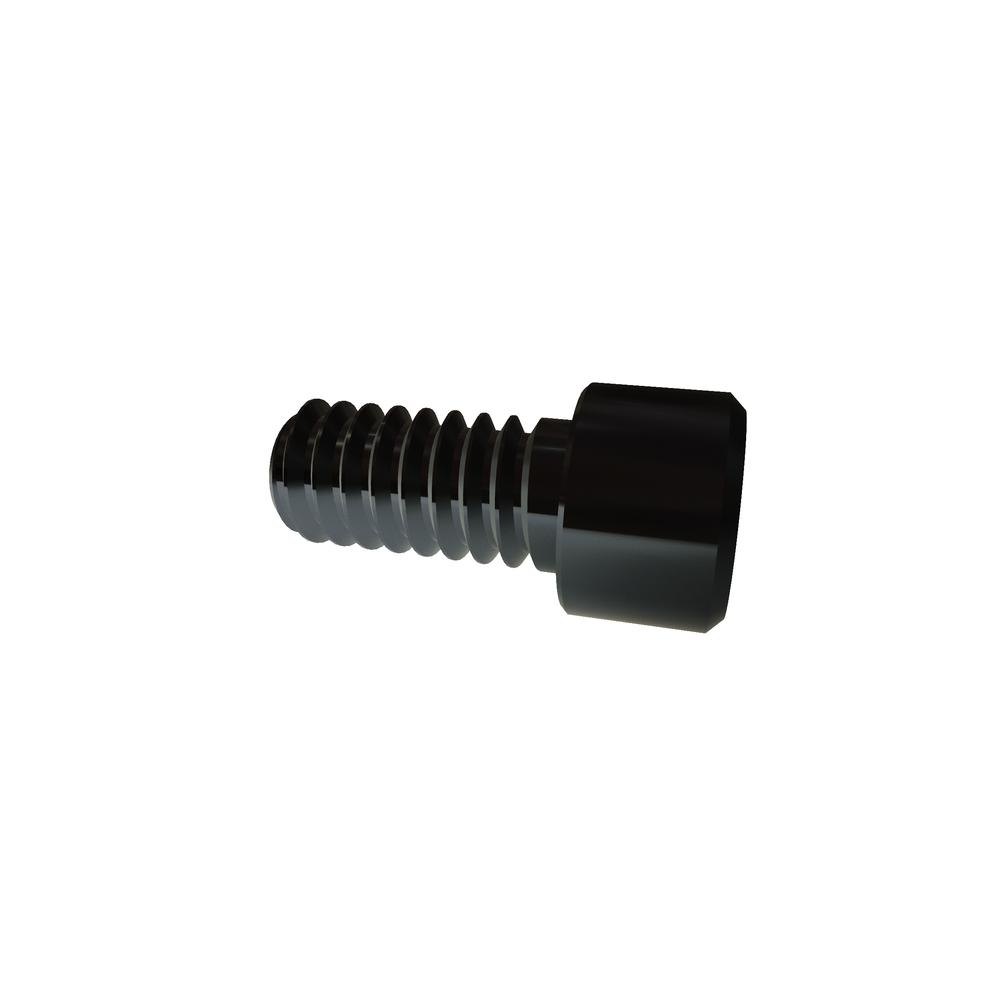

25C50SHCA
1/4-20 X 1/2 SOC CAP ALLOY
Alternate Codes: 031G164420, 1002-2508, 1408CSP KANEBRIDGE, 390-050247-00, 4300026-09, 502, 70142050, 78-0054-00, 91251A537
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.193 | $0.116 | $0.097 | $0.079 | $0.070 | Larger Quantities |
In Stock
| Thread Size | 1/4-20 |
| Material | Alloy Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Head Type | Socket |
| Drive Type | Hex Socket |
| Brand | VARIED |
| Additional Industry Cross Reference | 91251A537 91251A537 |
| Key Engagement (Min.) | 0.120in |
| Length | 1/2in |
| Meets (Standard) | ASME B18.3 |
| Body Diameter (Max.) | 0.250in |
| Head Diameter (Max.) | 0.375in |
| Head Diameter (Min.) | 0.354in |
| Head Height (Max.) | 0.250in |
| Head Height (Min.) | 0.244in |
| Hex Socket Size | 0.188in |
