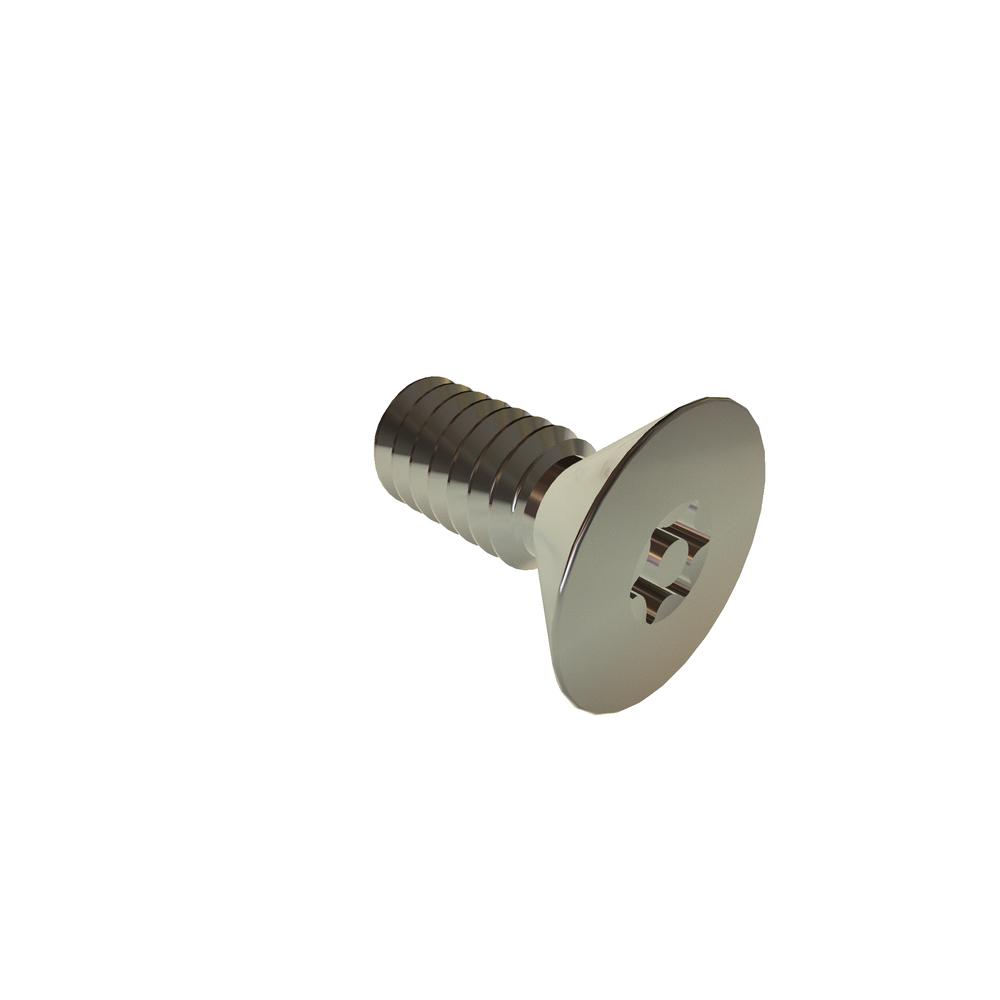

25C62FHXS/T
1/4-20 X 5/8 FLAT SOC TORX T-R SST RoHS
Alternate Codes: 91870A250
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 1/4-20 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Head Type | Flat |
| Drive Type | Torx |
| Drive Size | T27 |
| Recess Diameter | 0.200in |
| Recess Depth (Min.) | 0.075in |
| Recess Depth (Max.) | 0.090in |
| Pin Diameter | 0.078in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91870A250 |
| Length | 0.62in |
| RoHS | Compliant |
| Head Diameter (Max.) | 0.507in |
| Head Diameter (Min.) | 0.452in |
| Head Height (Max.) | 0.161in |
