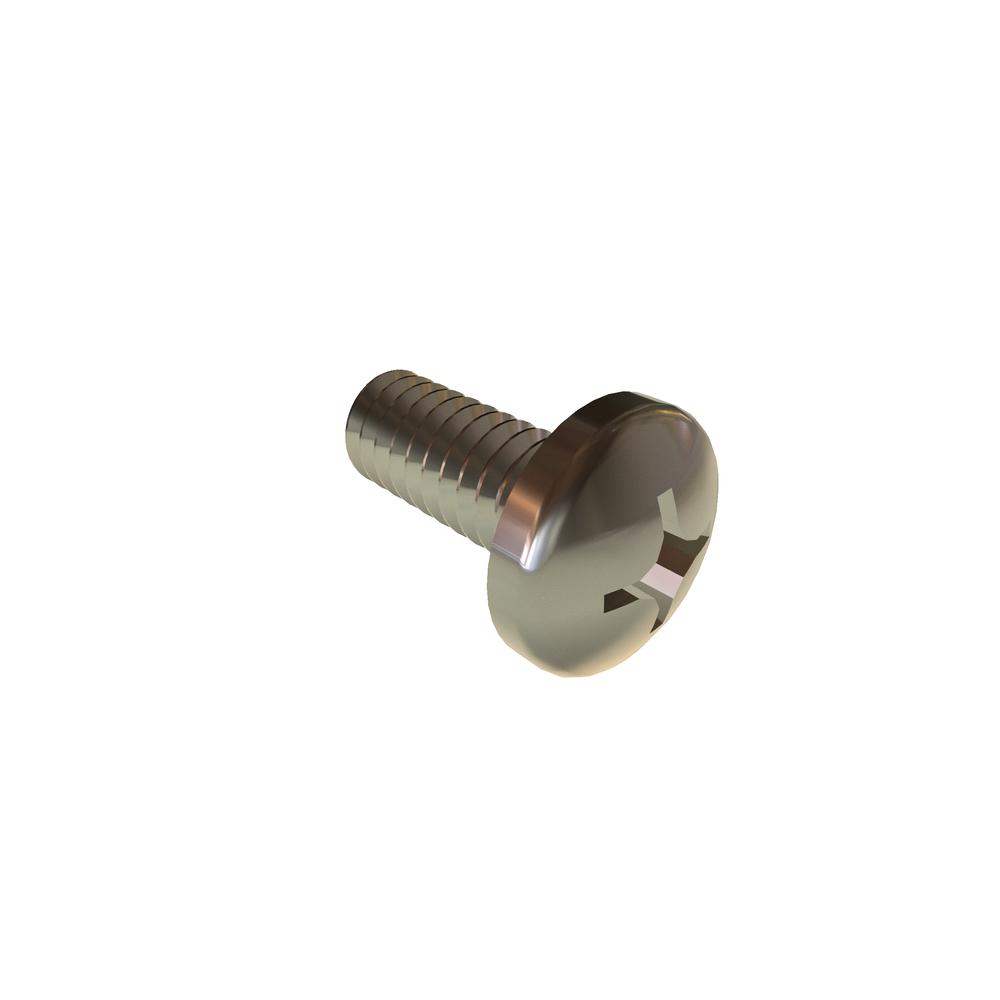

1/4-20 X 5/8 PH PAN SST RoHS
25C62PPMS
| Item Id | 25C62PPMS |
| Description | 1/4-20 X 5/8 PHIL PAN SST RoHS |
| Alternate Codes | 050311, MS51957-80 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91772A539 |
| Brand | VARIED |
| Drive Size | 3 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.492in |
| Head Diameter (Min.) | 0.473in |
| Head Height (Max.) | 0.175in |
| Head Height (Min.) | 0.162in |
| Head Radius (Min.) | 0.035in |
| Head Type | Pan |
| Length | 0.62in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.250in |
| Recess Depth (Max.) | 0.144in |
| Recess Depth (Min.) | 0.118in |
| Recess Diameter | 0.274in |
| RoHS | Compliant |
| Thread Size | 1/4-20 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
