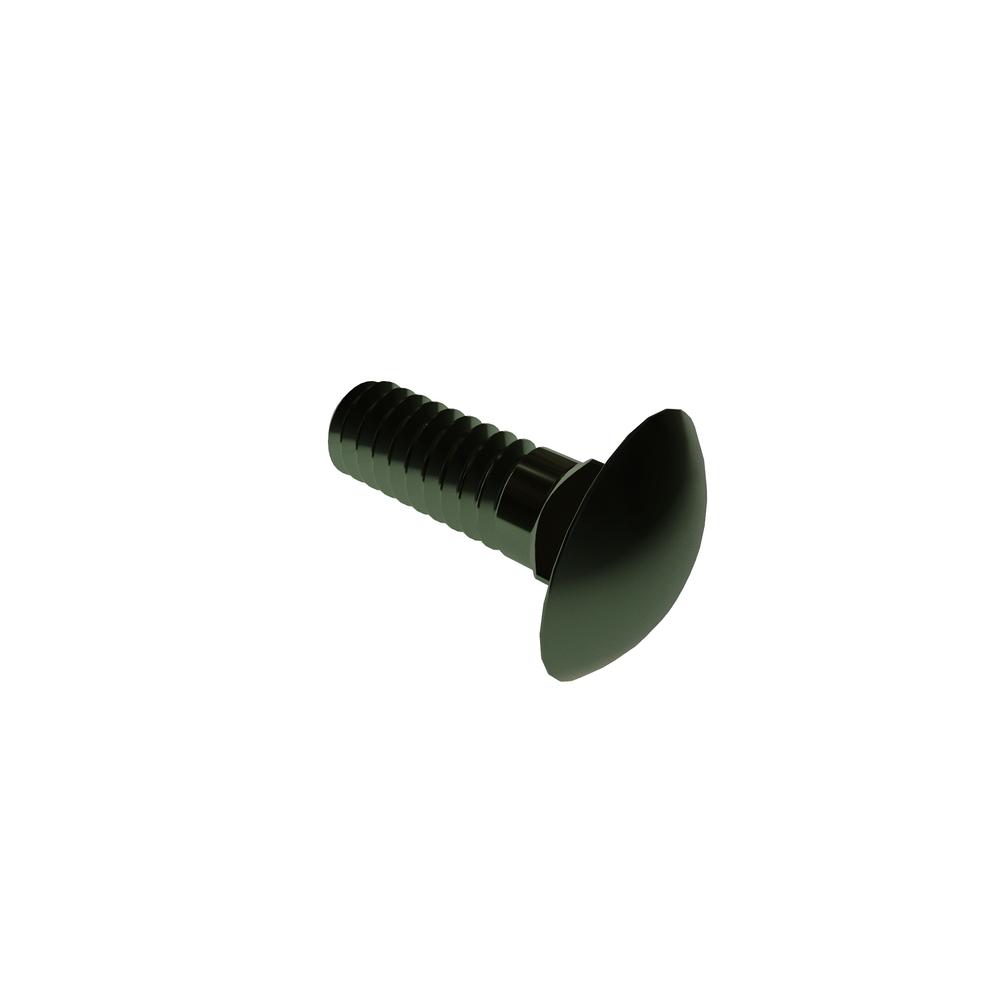

25C75CARZR
1/4-20 X 3/4 CARRIAGE BOLT STL ZN CR3
Alternate Codes: 90185A540
1/4-20 X 3/4 CARRIAGE BOLT Steel Zinc plate RoHS3
Pricing per Unit
| 1-249 pcs |
|---|
| $0.186 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 1/4-20 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Body Diameter (Min.) | 0.213in |
| Grade | Other |
| Corner radius | 0.031in |
| Square Depth (Min.) | 0.125in |
| Square Depth (Max.) | 0.156in |
| Square Width (Min.) | 0.245in |
| Square Width (Max.) | 0.260in |
| Fillet Radius | 0.031in |
| Brand | VARIED |
| Type | Carriage Bolt |
| Additional Industry Cross Reference | 90185A540 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.5 |
| Body Diameter (Max.) | 0.260in |
| Head Diameter (Max.) | 0.594in |
| Head Diameter (Min.) | 0.563in |
| Head Height (Max.) | 0.145in |
| Head Height (Min.) | 0.125in |
| Thread Length | 0.750in |
| Total Length | 0.75in |
