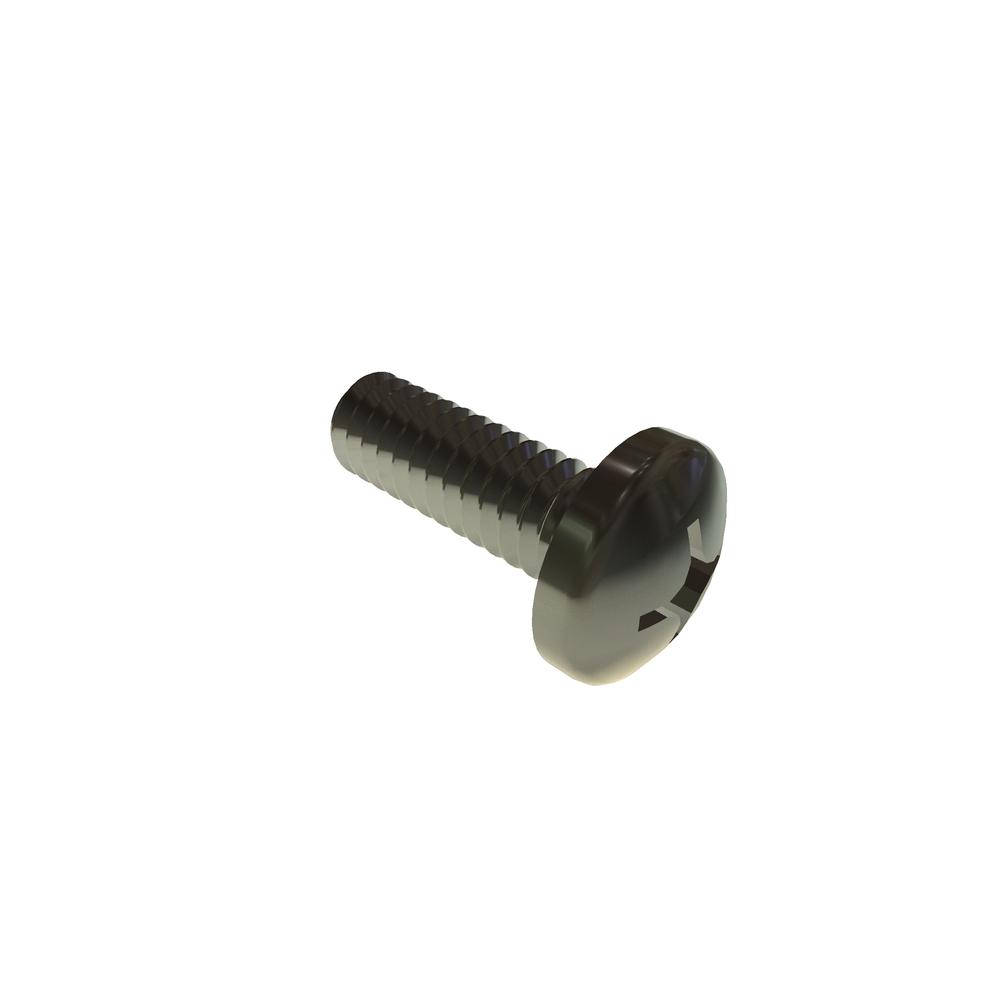

25C75PPMS/P
1/4-20 X 3/4 PH PAN PATCH SST RoHS
Alternate Codes: 96562A540
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 1/4-20 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Head Type | Pan |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Drive Size | 3 |
| Penetration Depth (Min.) | 0.118in |
| Penetration Depth (Max.) | 0.144in |
| Recess Diameter | 0.274in |
| Head Radius (Min.) | 0.035in |
| Brand | VARIED |
| Additional Industry Cross Reference | 96562A540 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.492in |
| Head Diameter (Min.) | 0.473in |
| Head Height (Max.) | 0.175in |
| Head Height (Min.) | 0.162in |
