25C75PTMS

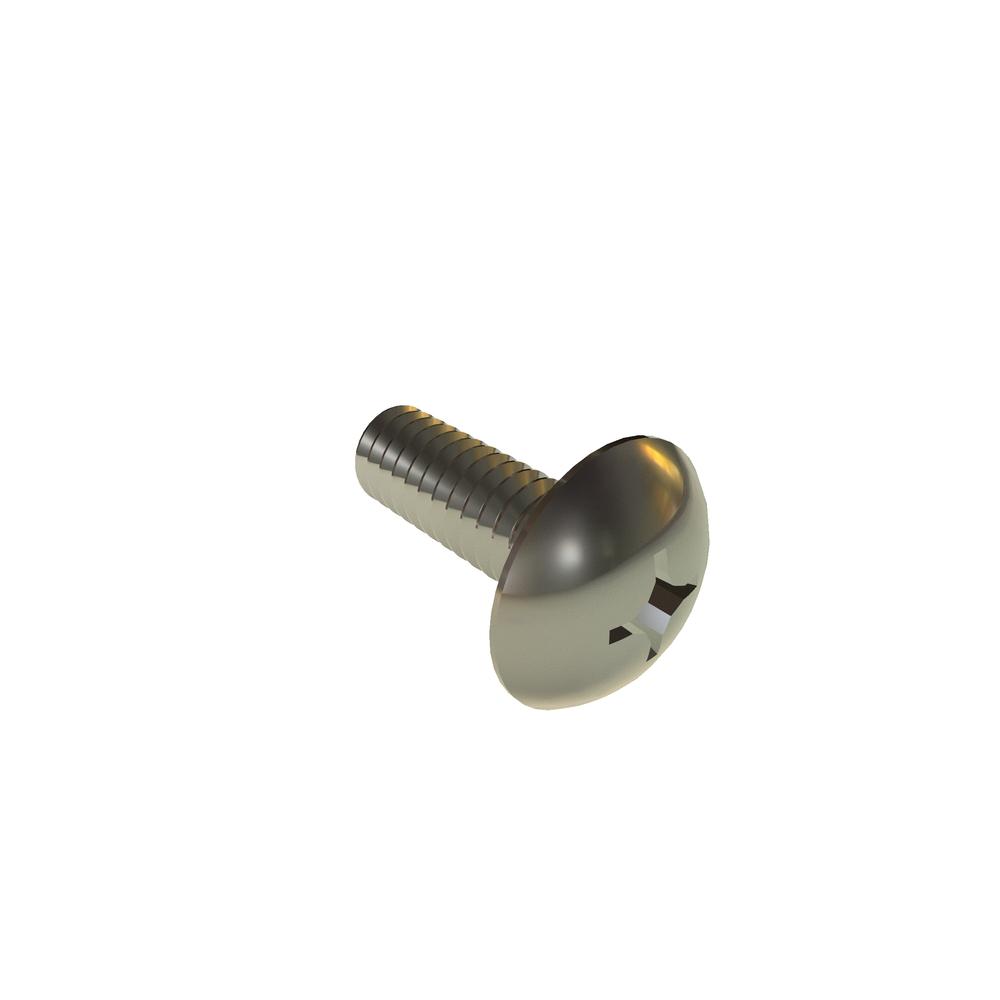

1/4-20 X 3/4 PHIL TRUSS SST RoHS
Alternate Codes: 91770A540
Pricing per Unit
| 1-99 pcs |
|---|
| $0.473 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 1/4-20 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Head Type | Truss |
| Drive Type | Phillips |
| Drive Size | 3 |
| Recess Diameter | 0.256in |
| Head Radius (Min.) | 0.375in |
| Recess Depth (Min.) | 0.101in |
| Recess Depth (Max.) | 0.126in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91770A540 |
| Length | 0.75in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.573in |
| Head Diameter (Min.) | 0.546in |
| Head Height (Max.) | 0.150in |
| Head Height (Min.) | 0.133in |
