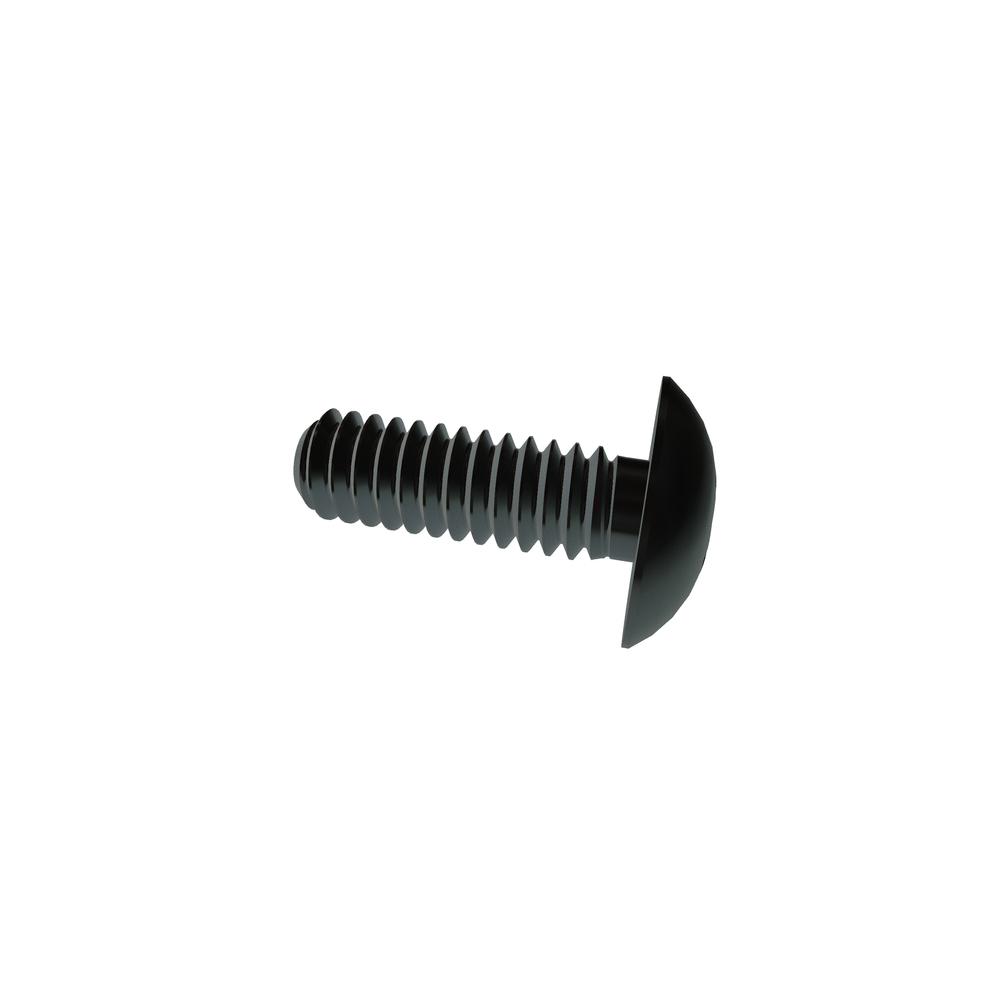

1/4-20 X 3/4 PHIL TRUSS STL ZN CR3
25C75PTMZR
| Item Id | 25C75PTMZR |
| Description | 1/4-20 X 3/4 PHIL TRUSS STL ZN RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 3 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.573in |
| Head Diameter (Min.) | 0.546in |
| Head Height (Max.) | 0.150in |
| Head Height (Min.) | 0.133in |
| Head Radius (Min.) | 0.375in |
| Head Type | Truss |
| Length | 0.75in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.250in |
| Recess Depth (Max.) | 0.126in |
| Recess Depth (Min.) | 0.101in |
| Recess Diameter | 0.256in |
| RoHS | Compliant |
| Thread Size | 1/4-20 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
