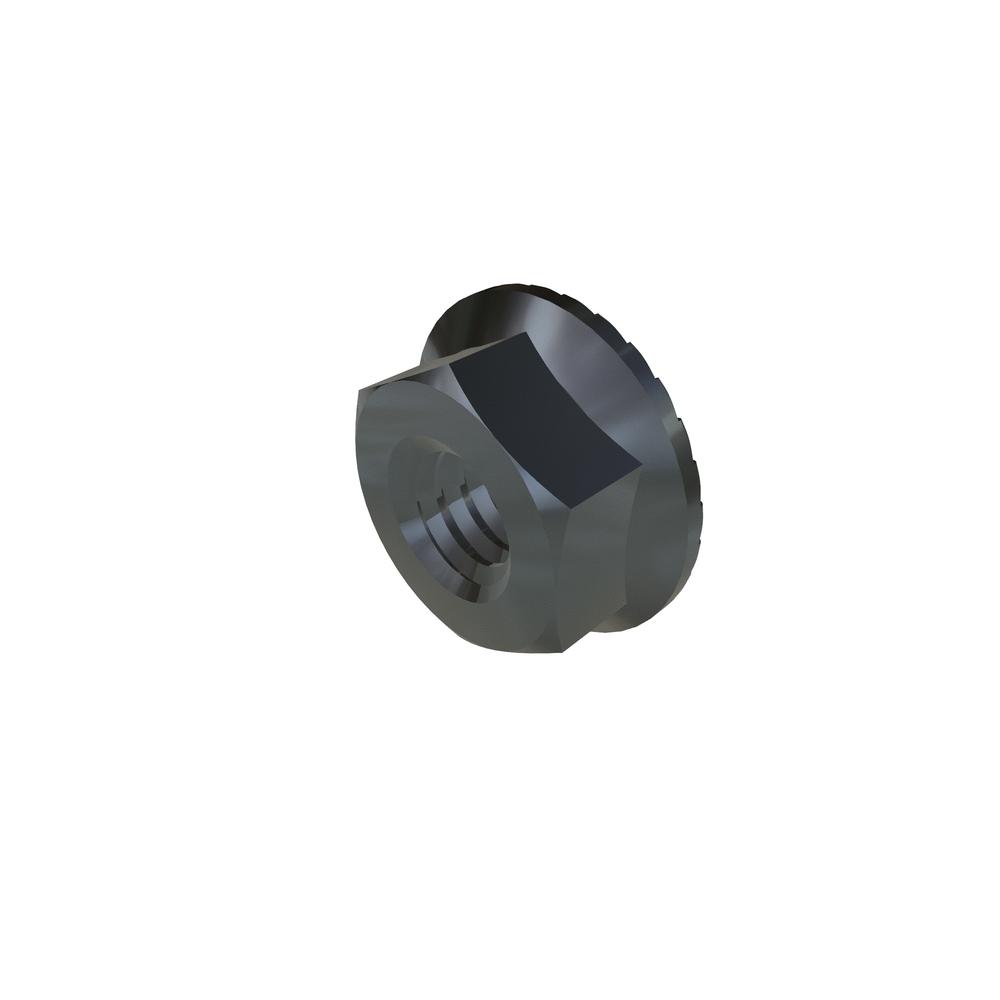

25CFLNZR/W
1/4-20 FLANGE NUT WHIZLOK STL ZN CR3
Alternate Codes: 90659A101
RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.214 | $0.128 | $0.107 | $0.087 | $0.077 | Larger Quantities |
In Stock
| Thread Size | 1/4-20 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Flange Diameter (Min.) | 0.574in |
| Flange Diameter (Max.) | 0.594in |
| Flange Thickness (Min.) | 0.040in |
| Wrenching Height (Min.) | 0.140in |
| Brand | VARIED |
| Type | Flange Nut Whizlok |
| Additional Industry Cross Reference | 94831A029 |
| Meets (Standard) | ASME B18.16.4 |
| Head Thickness (Max.) | 0.236in |
| Head Thickness (Min.) | 0.222in |
| Width Across Flat (Max.) | 0.438in |
| Width Across Flat (Min.) | 0.428in |
