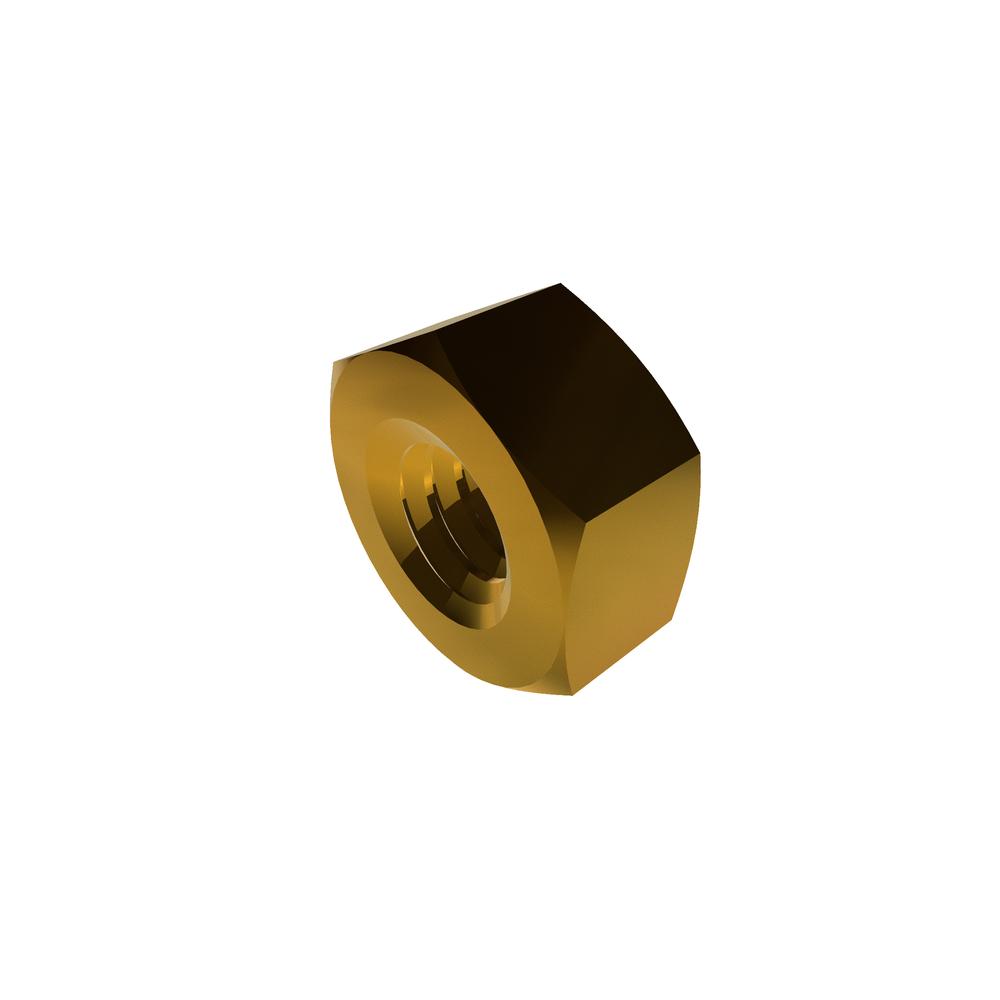

Image for reference purposes only. Actual product may vary.
25CHNT8YR
1/4-20 HX NUT ZN CR3 YLW GR 8
Alternate Codes: 25CHNT8/Y, 94895A029
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.275 | $0.144 | $0.114 | $0.106 | $0.088 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 1/4-20 |
| Finish | Zinc Cr3 Yellow |
| Grade | GR 8 |
| Type | Hex Nut |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Thickness (Min.) | 0.212in |
| Brand | VARIED |
| Additional Industry Cross Reference | 94895A029 |
| Meets (Standard) | ASME B18.2.2 |
| Width Across Flat (Max.) | 0.438in |
| Width Across Flat (Min.) | 0.428in |
| Thickness (Max.) | 0.226in |
