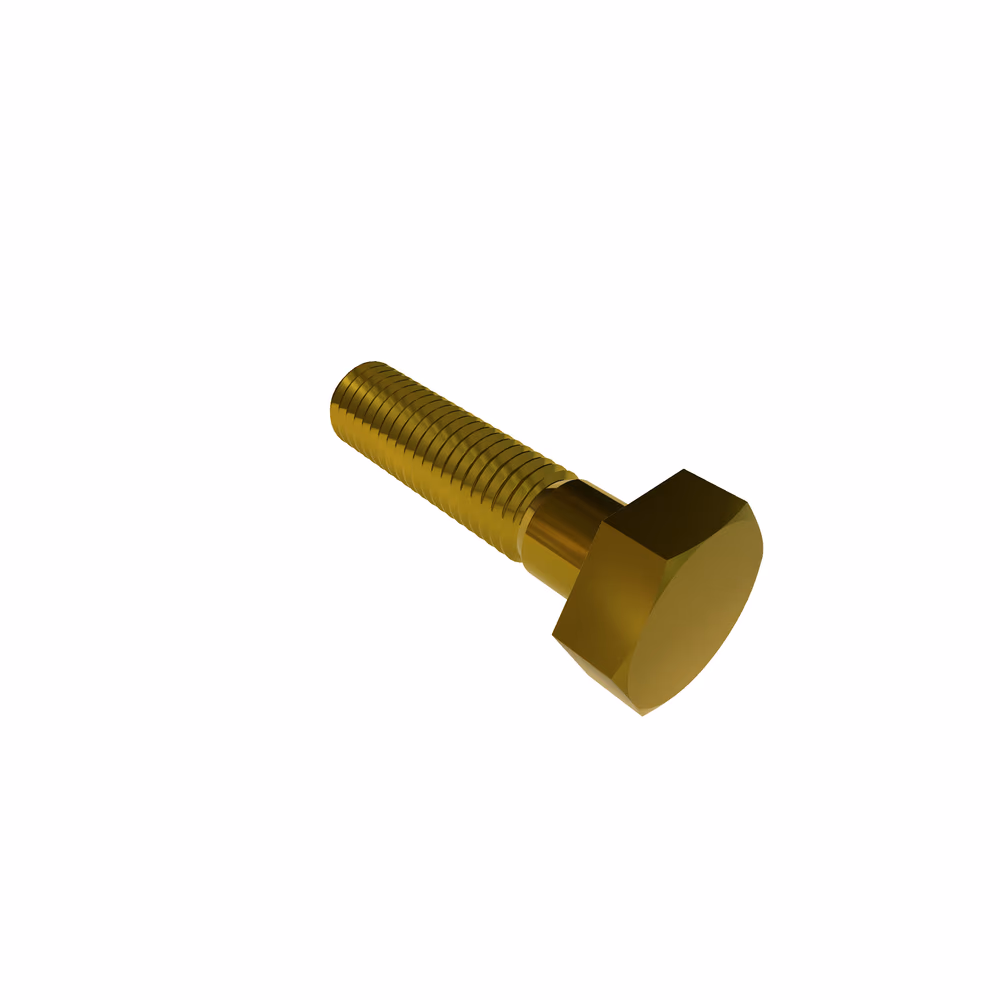

Image for reference purposes only. Actual product may vary.
25F100HHD8YR
1/4-28 X 1 HX HD GR 8 ZN YLW
Alternate Codes: 25F100HHD8/Y, 25F100HHD8/YR, 25F100HHD8Y
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.712 | $0.453 | $0.416 | $0.384 | $0.324 | Larger Quantities |
In stock
| Meets (Standard) | ASME B18.2.1 |
| Length | 1.00in |
| Thread Size | 1/4-28 |
| Head Height (Min.) | 0.150in |
| Body Diameter (Max.) | 0.260in |
| Head Height (Max.) | 0.188in |
| Body Diameter (Min.) | 0.237in |
| Nominal Thread Size | 0.250in |
| Width Across Flat (Min.) | 0.425in |
| Thread Type | Unified Fine Thread (UNF) |
| Material | Alloy Steel |
| Width Across Flat (Max.) | 0.438in |
| Finish | Zinc Yellow |
| Head Type | Hex |
| Grade | 8 |
| Brand | VARIED |
| Units | Inch |
