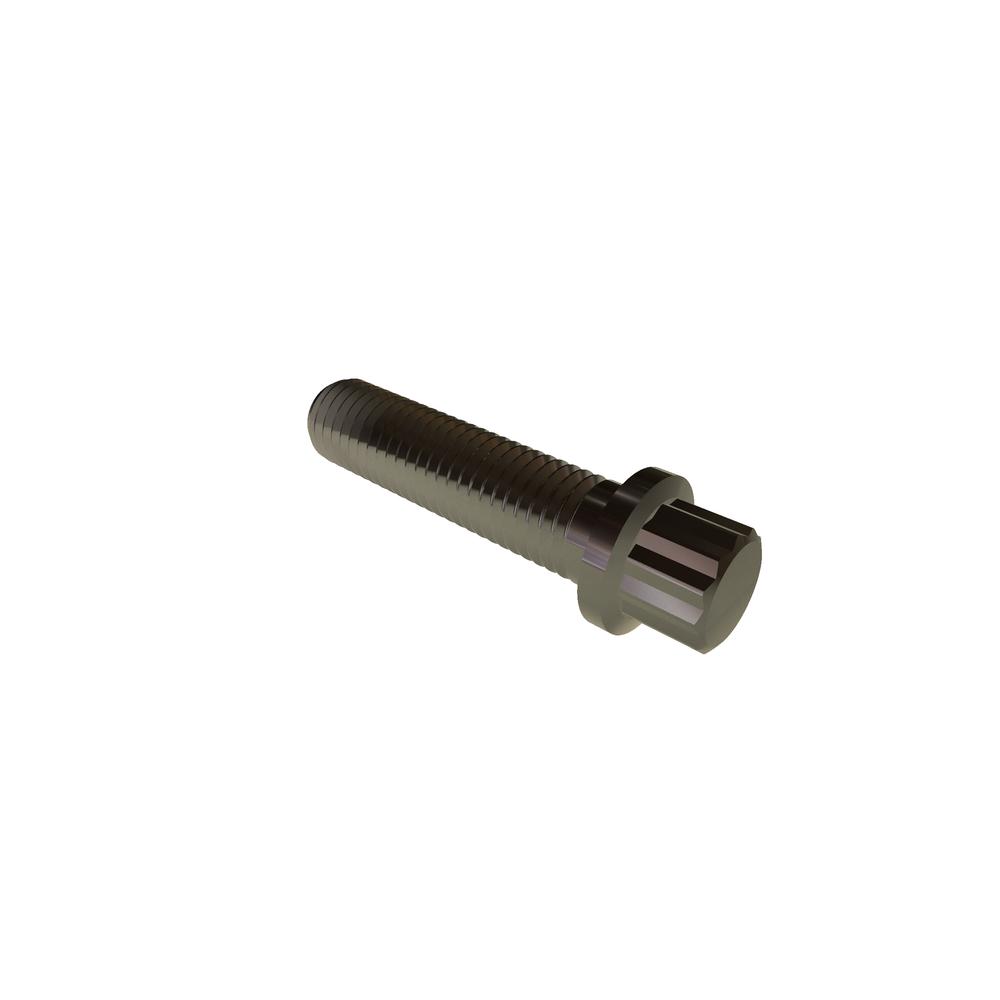

25F125TWBS
1/4-28 X 1 1/4 12-PT BOLT SST RoHS
Alternate Codes: 100-00-808, 96242A573
1/4-28 X 1 1/4 12-PT BOLT Stainless Steel RoHS3
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 1/4-28 |
| Thread Size | 1/4/2028 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.250in |
| Head Type | 12-Point Bolt |
| Body Diameter (Min.) | 0.244in |
| Grade | Other |
| Flange Diameter (Min.) | 0.365in |
| Flange Diameter (Max.) | 0.375in |
| Flange Thickness (Min.) | 0.058in |
| Wrenching Height (Min.) | 0.150in |
| Brand | VARIED |
| Additional Industry Cross Reference | 96242A573 |
| Length | 1.250in |
| RoHS | Compliant |
| Body Diameter (Max.) | 0.250in |
| Head Height (Min.) | 0.260in |
| Width Across Flat (Max.) | 0.252in |
| Width Across Flat (Min.) | 0.244in |
| Thread Style | Fully Threaded |
| Socket Wrench Size | 1/4in |
| Total Length | 1.250in |
