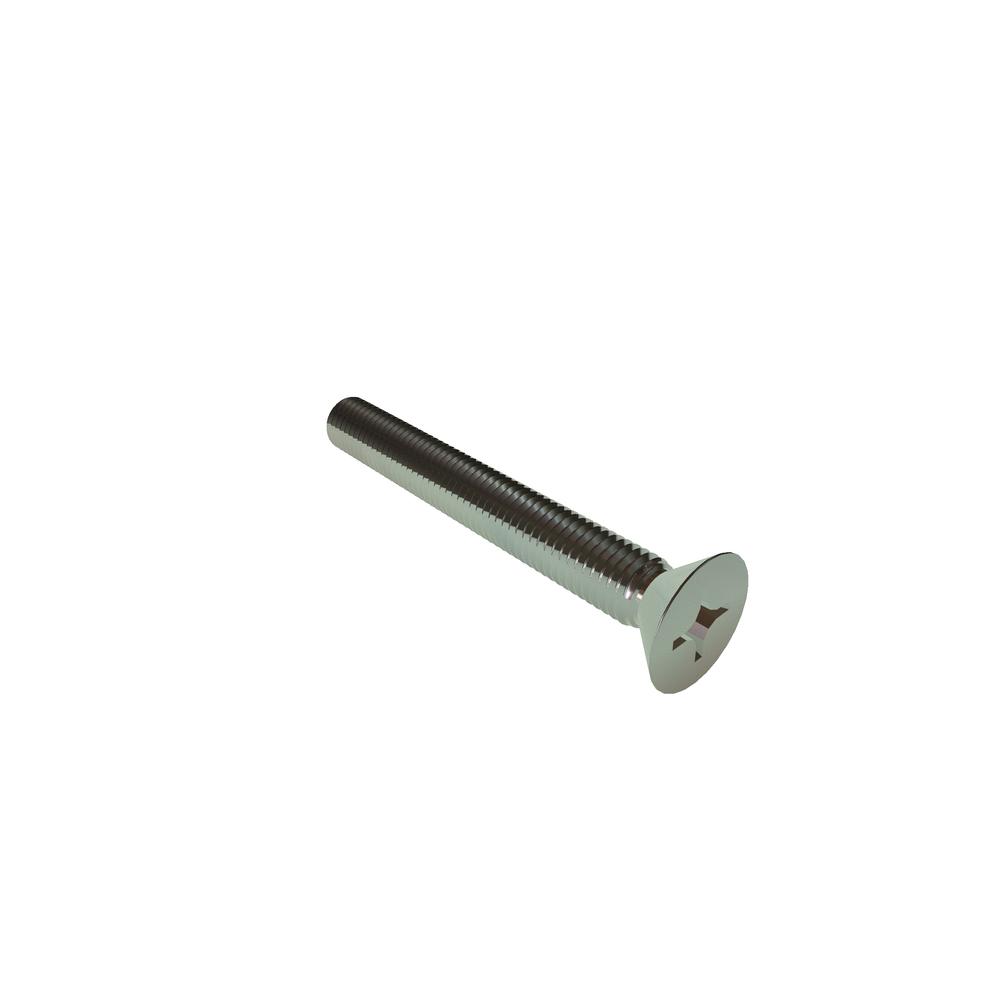

Image for reference purposes only. Actual product may vary.
25F200PFMS
1/4-28 X 2 PHIL FLAT SST RoHS
Alternate Codes: N/A
1/4-28 X 2 Phillips FLAT Head Stainless Steel RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 1/4-28 |
| Length | 2.00in |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Finish | Plain |
| Brand | VARIED |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.250in |
| Head Type | Flat |
| Drive Size | 3 |
| Recess Diameter | 0.276in |
| Head Height | 0.153in |
| Recess Depth (Min.) | 0.131in |
| Recess Depth (Max.) | 0.154in |
| Additional Industry Cross Reference | 91771A566 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.477in |
| Head Diameter (Min.) | 0.442in |
