25N100HHLZR
1/4 X 1 HX HD LAG BOLT STL ZN CR3
Alternate Codes: 91478A542

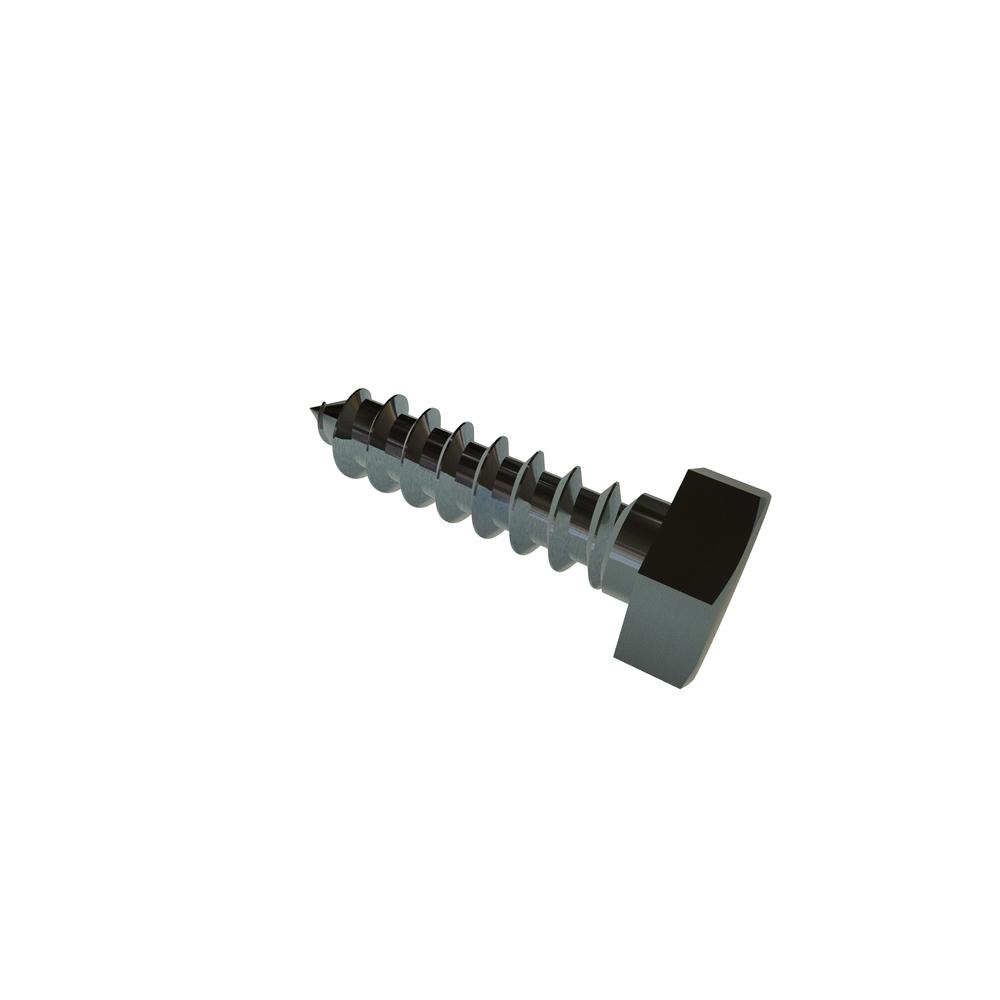

1/4-10 X 1 HEX Head LAG BOLT Steel Zinc plate RoHS3
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 1/4-10 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Nominal Diameter | 0.250in |
| Body Diameter (Min.) | 0.237in |
| Grade | Other |
| Point Type | Gimlet Point |
| Brand | VARIED |
| Type | Lag Bolts |
| Additional Industry Cross Reference | 91478A542 |
| Length | 1.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME-B18.2.1 |
| Body Diameter (Max.) | 0.260in |
| Head Height (Max.) | 0.188in |
| Head Height (Min.) | 0.150in |
| Width Across Flat (Max.) | 0.438in |
| Width Across Flat (Min.) | 0.425in |
