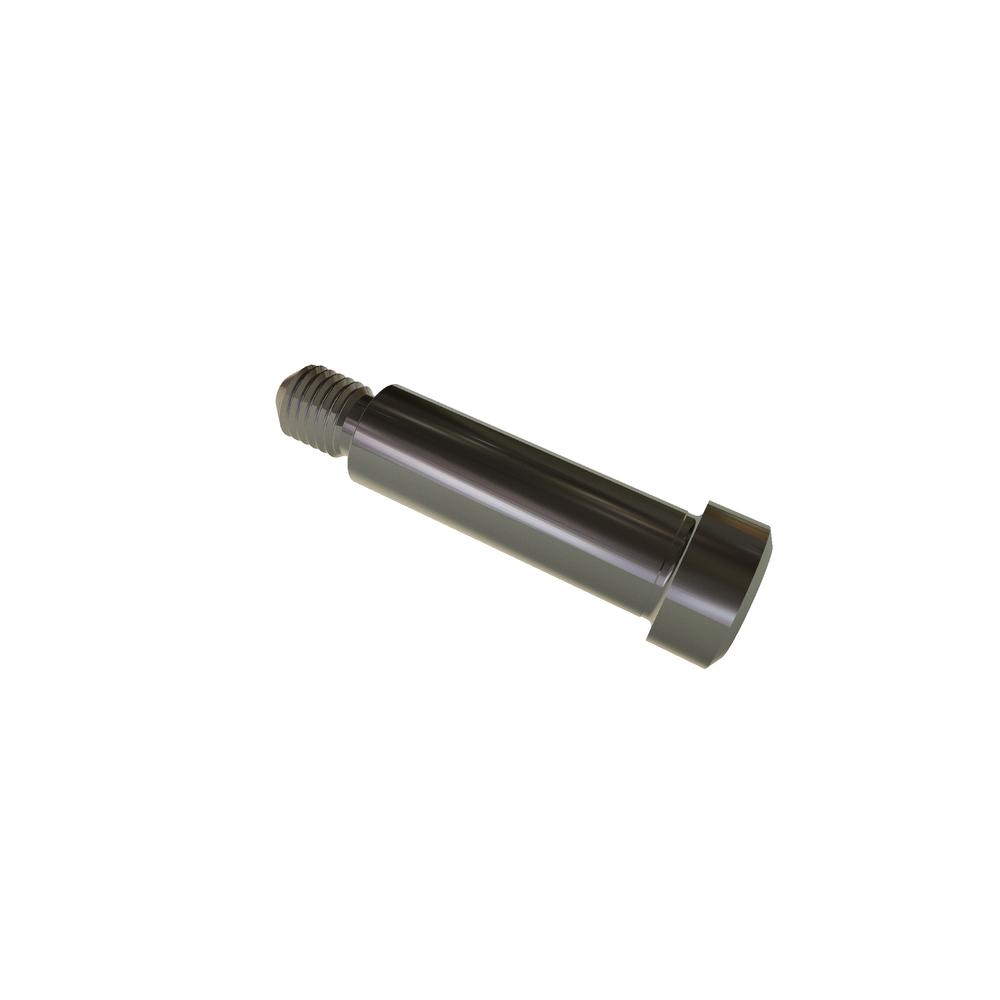

Image for reference purposes only. Actual product may vary.
25R25SHBSS
1/4 X 1/4 SHLDR BOLT SST RoHS 10-32 THD
Alternate Codes: 90298A217
RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 0.190in |
| Length | 1/4in |
| Thread Size | 10-24 |
| Finish | Plain |
| Nominal Shoulder Diameter | 0.250in |
| Material | Stainless Steel |
| Thread Length | 0.375in |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Key Engagement | 0.094in |
| Head Side Height (Min.) | 0.020in |
| Shoulder Diameter | 1/4in |
| Shoulder Diameter (Min.) | 0.246in |
| Shoulder Diameter (Max.) | 0.248in |
| Brand | VARIED |
| Type | Shoulder Bolt |
| Additional Industry Cross Reference | 90298A217 90298A217 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3-2012 |
| Head Diameter (Max.) | 0.375in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.188in |
| Head Height (Min.) | 0.177in |
| Hex Socket Size | 0.125in |
