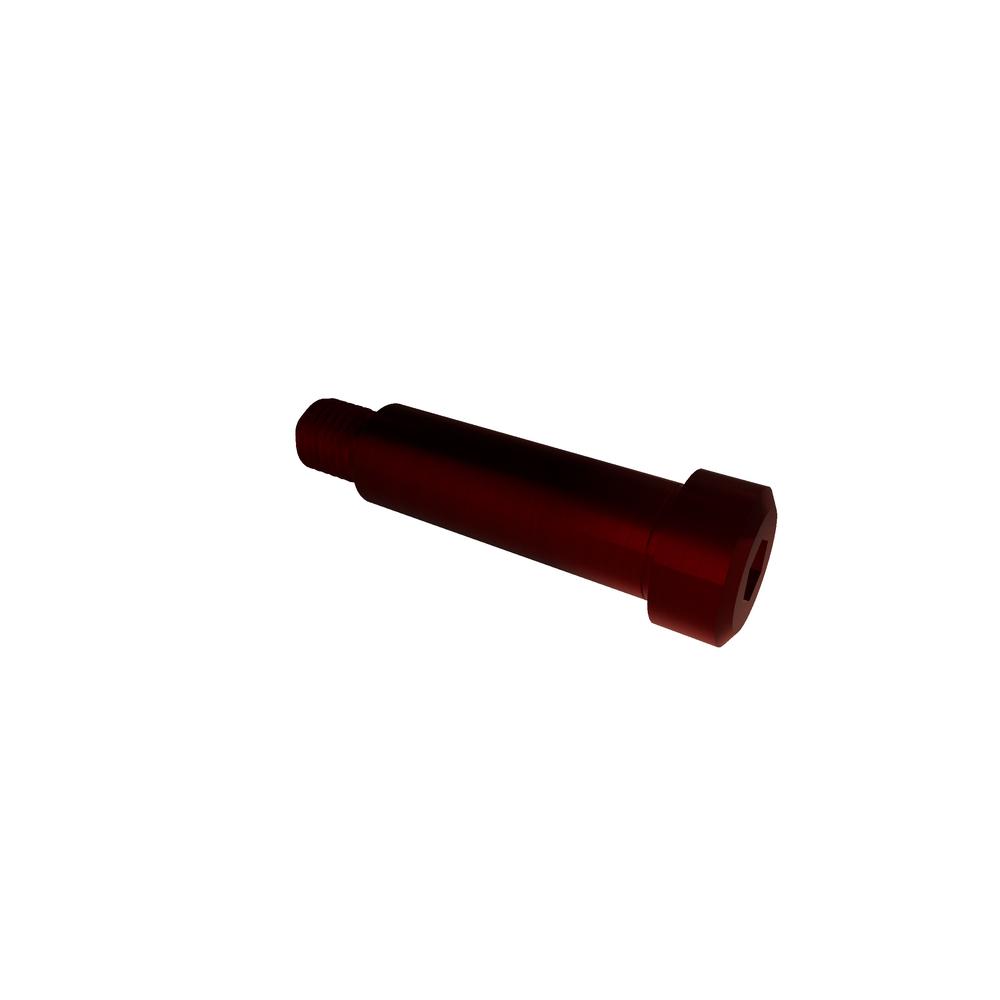

25R62SHBA
1/4 X 5/8 SHLDR BOLT ALLOY
Alternate Codes: 4300493-11, 490-0035, 91259A539
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $1.420 | $0.903 | $0.829 | $0.765 | $0.645 | Larger Quantities |
In Stock
| Thread Size | 10-24 |
| Material | Alloy |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.190in |
| Key Engagement | 0.094in |
| Head Side Height (Min.) | 0.020in |
| Shoulder Diameter | 1/4in |
| Nominal Shoulder Diameter | 0.250in |
| Shoulder Diameter (Min.) | 0.246in |
| Shoulder Diameter (Max.) | 0.248in |
| Brand | VARIED |
| Type | Shoulder Bolt |
| Additional Industry Cross Reference | 91259A539 |
| Length | 5/8in |
| Meets (Standard) | ASME B18.3-2012 |
| Head Diameter (Max.) | 0.375in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.188in |
| Head Height (Min.) | 0.177in |
| Hex Socket Size | 0.125in |
| Thread Length | 0.375in |
