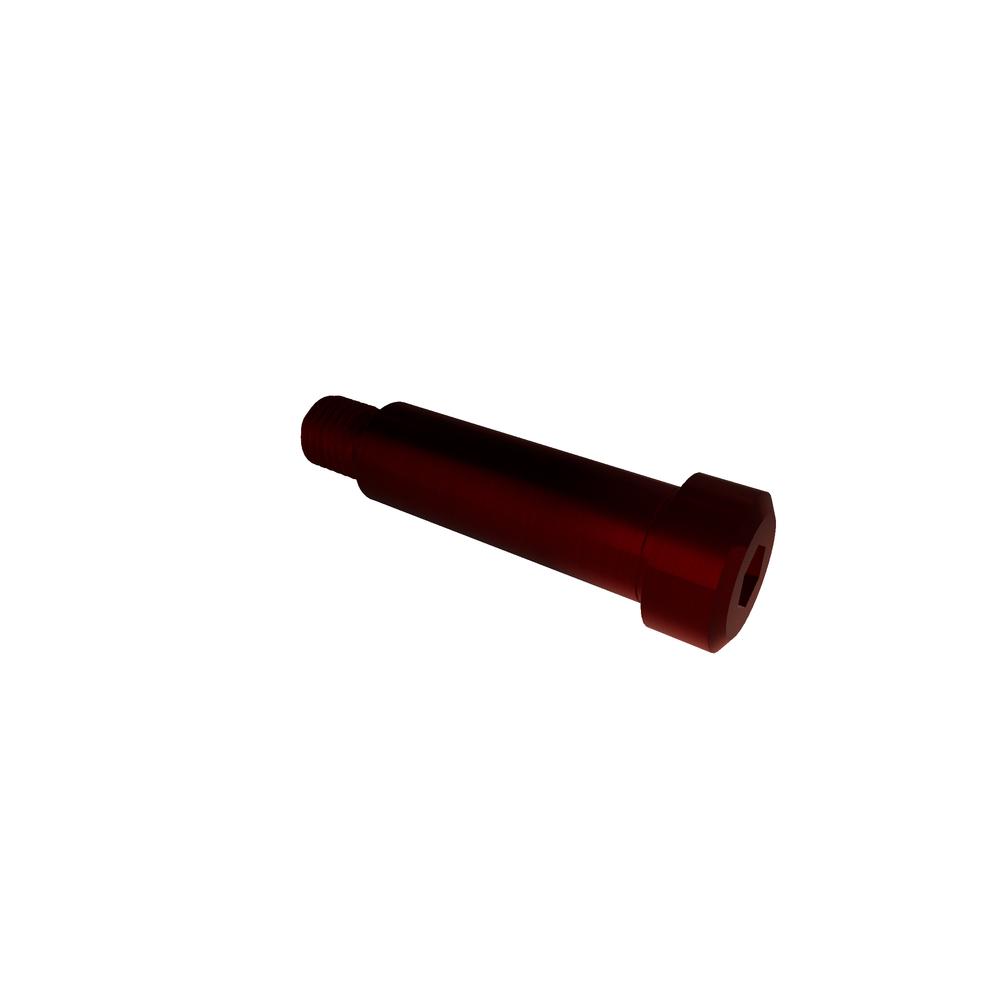

1/4 X 3/4 SHLDR BOLT ALLOY

25R75SHBA

Item Id25R75SHBA
Description1/4 X 3/4 SHLDR BOLT ALLOY RoHS
Alternate Codes40528907, 91259A540
Extended Description
PackagingEA
Additional Industry Cross Reference91259A540
BrandVARIED
FinishPlain
Head Diameter (Max.)0.375in
Head Diameter (Min.)0.357in
Head Height (Max.)0.188in
Head Height (Min.)0.177in
Head Side Height (Min.)0.020in
Hex Socket Size0.125in
Key Engagement0.094in
Length3/4in
MaterialAlloy
Meets (Standard)ASME B18.3-2012
Nominal Diameter0.190in
Nominal Shoulder Diameter0.250in
Shoulder Diameter1/4in
Shoulder Diameter (Max.)0.248in
Shoulder Diameter (Min.)0.246in
Thread Length0.375in
Thread Size10-24
Thread TypeUnified Coarse Thread (UNC)
TypeShoulder Bolt
UnitsInch
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
