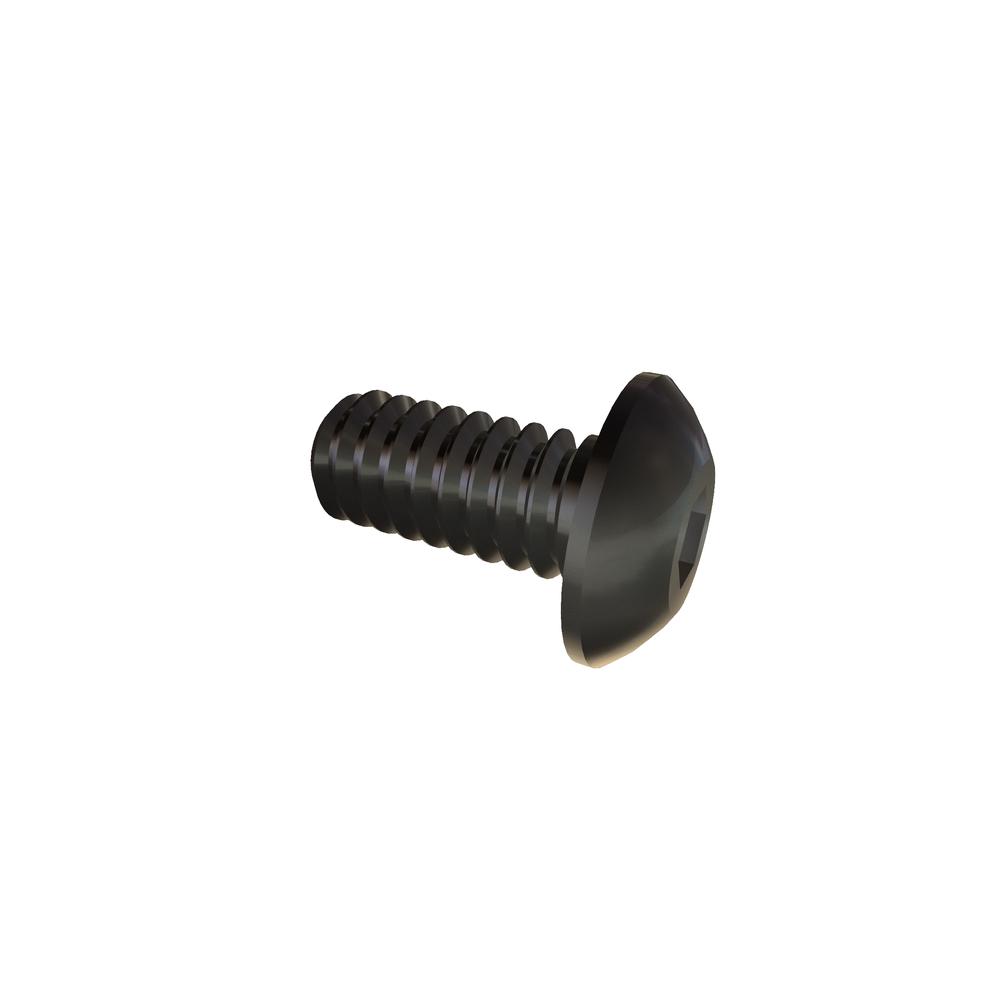

2C18BHC3
2-56 X 3/16 BUT SOC 316 SST RoHS
Alternate Codes: 98164A424
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.677 | $0.431 | $0.396 | $0.365 | $0.308 | Larger Quantities |
In Stock
| Thread Size | 2-56 |
| Material | 316 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 0.096in |
| Fillet Transition Diameter (Max.) | 0.106in |
| Head Side Height (Ref.) | 0.010in |
| Key Engagement | 0.028in |
| Brand | VARIED |
| Additional Industry Cross Reference | 98164A424 |
| Length | 3/16in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.164in |
| Head Diameter (Min.) | 0.154in |
| Head Height (Max.) | 0.046in |
| Head Height (Min.) | 0.038in |
| Hex Socket Size | 0.050in |
