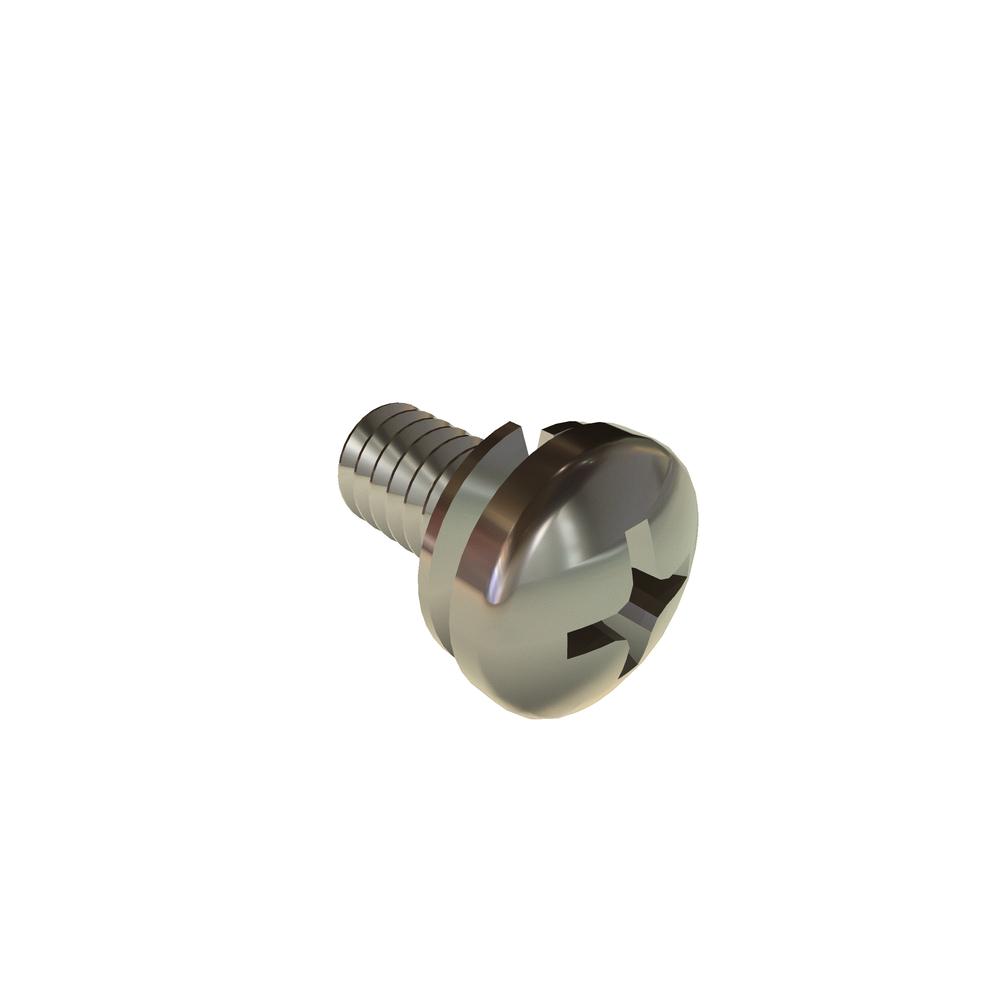

2C18PPLS
2-56 X 3/16 PHIL PAN SPLIT L/W SEMS SST
Alternate Codes: N/A
RoHS
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 2-56 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.035in |
| Lock Washer Outside Diameter (Min.) | 0.145in |
| Lock Washer Outside Diameter (Max.) | 0.156in |
| Washer Type | Split Lock Washer |
| Drive Size | 1 |
| Penetration Depth (Min.) | 0.034in |
| Penetration Depth (Max.) | 0.052in |
| Recess Diameter | 0.097in |
| Head Radius (Min.) | 0.010in |
| Brand | VARIED |
| Length | 3/16in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.167in |
| Head Diameter (Min.) | 0.155in |
| Head Height (Max.) | 0.062in |
| Head Height (Min.) | 0.053in |
| Lock Washer Thickness (Min.) | 0.020in |
| Lock Washer Inside Diameter (Min.) | 0.075in |
| Lock Washer Inside Diameter (Max.) | 0.080in |
