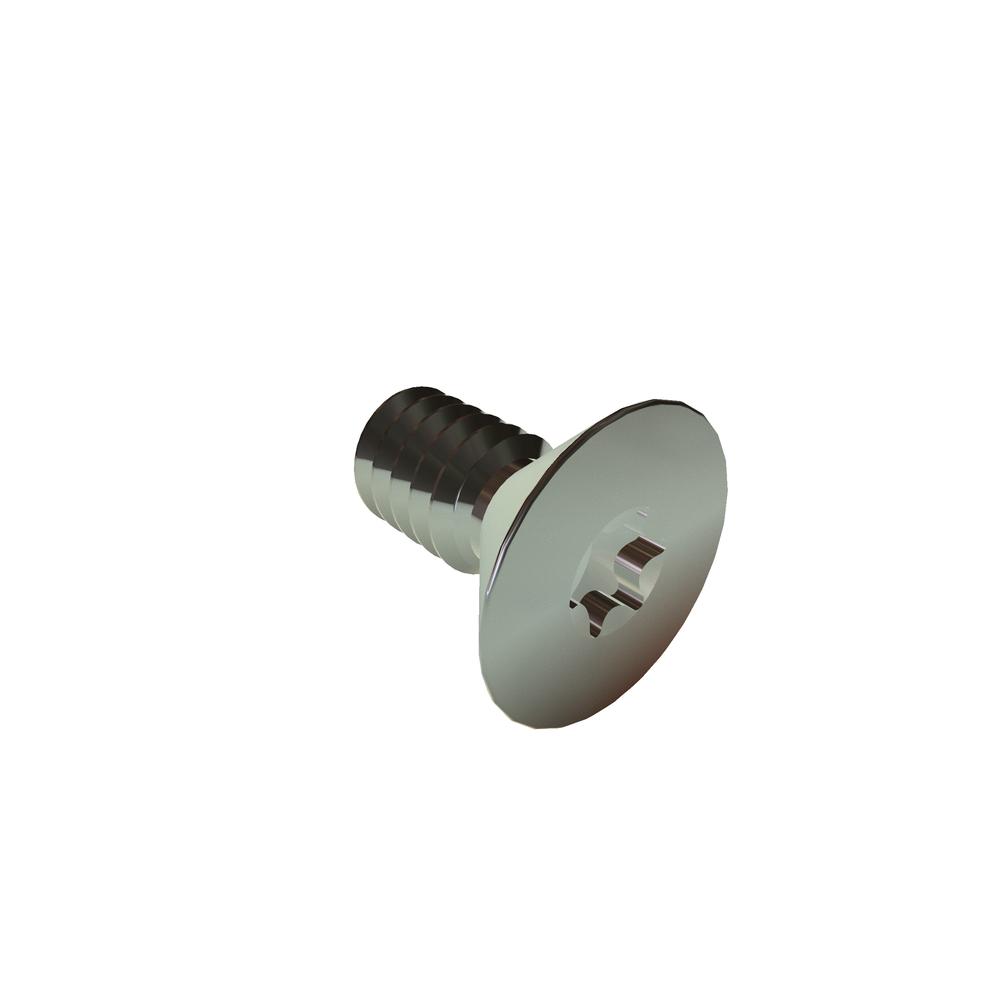

Image for reference purposes only. Actual product may vary.
2C18XFMS
2-56 X 3/16 TORX FLAT HD SST RoHS
Alternate Codes: N/A
2-56 X 3/16 TORX FLAT Head Stainless Steel RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 2-56 |
| Length | 0.18in |
| Drive Type | Torx |
| Material | Stainless Steel |
| Finish | Plain |
| Brand | VARIED |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Head Type | Flat |
| Drive Size | T6 |
| Recess Diameter | 0.069in |
| Head Height | 0.051in |
| Recess Depth (Min.) | 0.017in |
| Recess Depth (Max.) | 0.022in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.172in |
| Head Diameter (Min.) | 0.147in |
