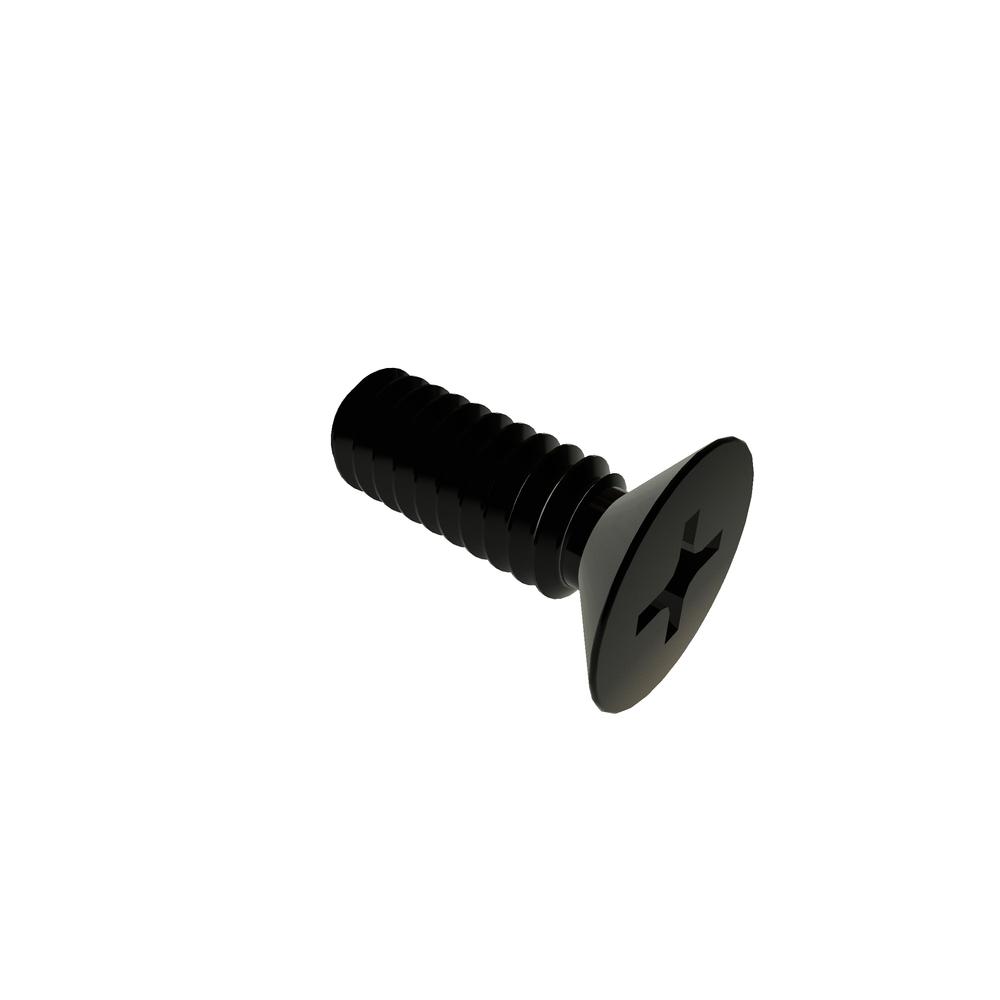

2C25PFHZB/P
2-56 X 1/4 PHIL FLAT 100 DEG PATCH STL
Alternate Codes: N/A
BLK OX RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.658 | $0.362 | $0.302 | $0.258 | $0.213 | Larger Quantities |
In Stock
| Thread Size | 2-56 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Head Type | Flat 100 Degree |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.088in |
| Head Height | 0.037in |
| Recess Depth (Min.) | 0.033in |
| Recess Depth (Max.) | 0.049in |
| Brand | VARIED |
| Length | 1/4in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.162in |
| Head Diameter (Min.) | 0.142in |
