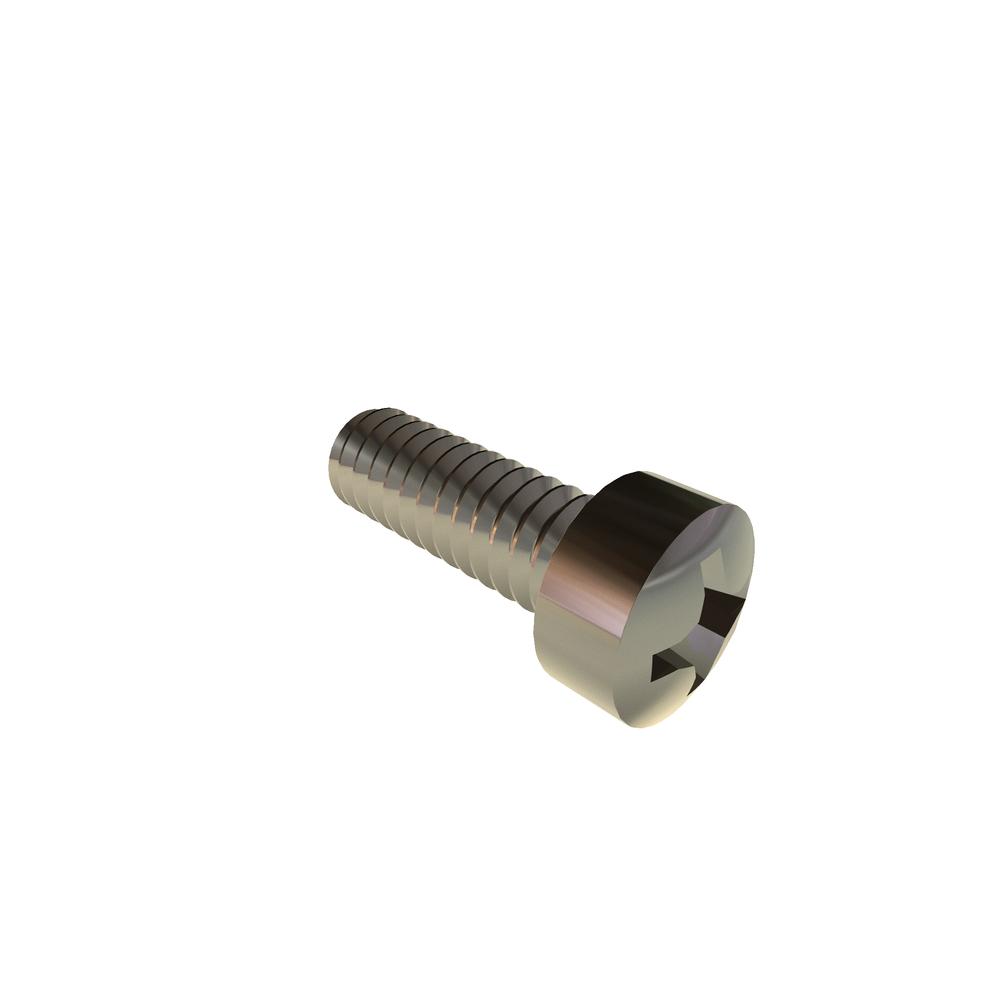

2C25PFIS
2-56 X 1/4 PHIL FILL SST RoHS
Alternate Codes: 91737A051
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | Feb-56 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Head Type | Fillister |
| Drive Type | Phillips |
| Drive Size | #1 |
| Recess Diameter | 0.097in |
| Recess Depth (Min.) | 0.034in |
| Recess Depth (Max.) | 0.052in |
| Head Side Height (Min.) | 0.053in |
| Head Side Height (Max.) | 0.062in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91737A051 |
| Length | 0.25in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.140in |
| Head Diameter (Min.) | 0.124in |
| Head Height (Max.) | 0.083in |
| Head Height (Min.) | 0.066in |
