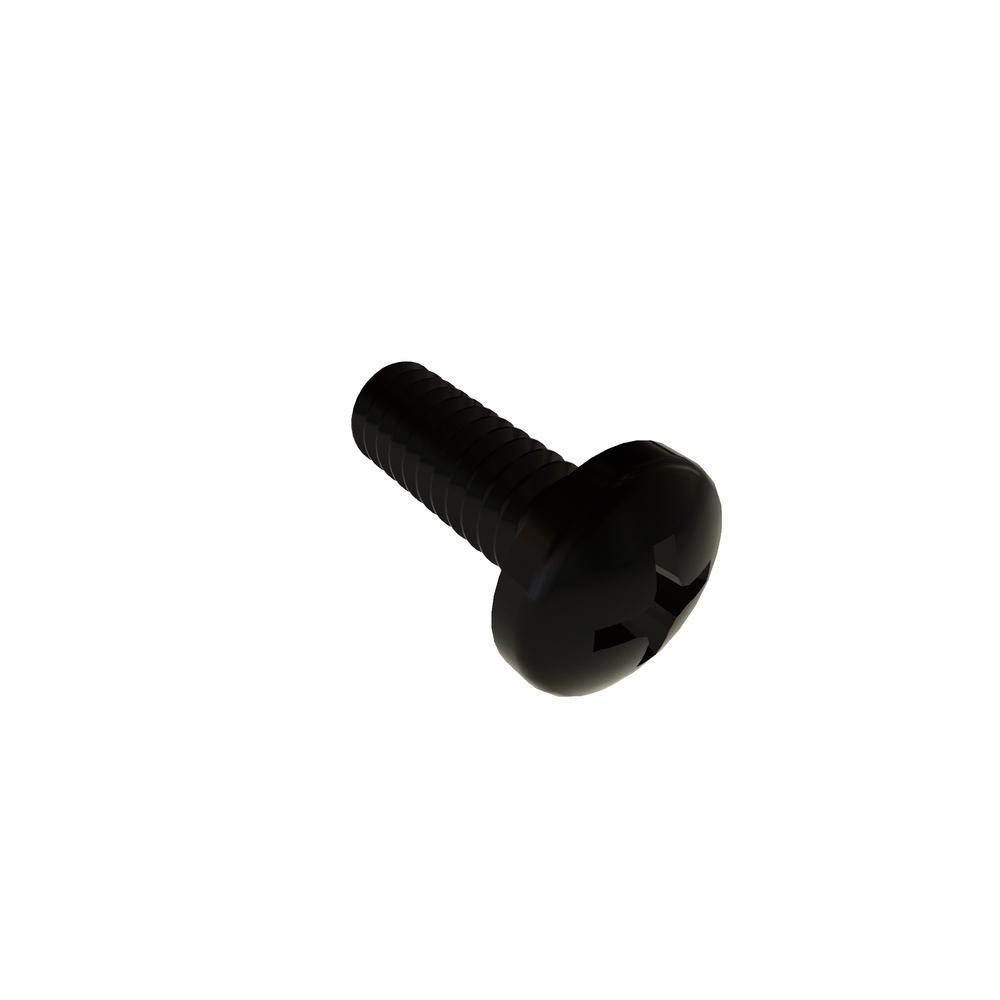

2-56 X 1/4 PH PAN SST RoHS BLK RoHS
2C25PPMSB
| Item Id | 2C25PPMSB |
| Description | 2-56 X 1/4 PHIL PAN SST BLK OX RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Black Oxide |
| Head Diameter (Max.) | 0.167in |
| Head Diameter (Min.) | 0.155in |
| Head Height (Max.) | 0.062in |
| Head Height (Min.) | 0.053in |
| Head Radius (Min.) | 0.010in |
| Head Type | Pan |
| Length | 0.25in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.086in |
| Recess Depth (Max.) | 0.052in |
| Recess Depth (Min.) | 0.034in |
| Recess Diameter | 0.097in |
| RoHS | Compliant |
| Thread Size | 2-56 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
