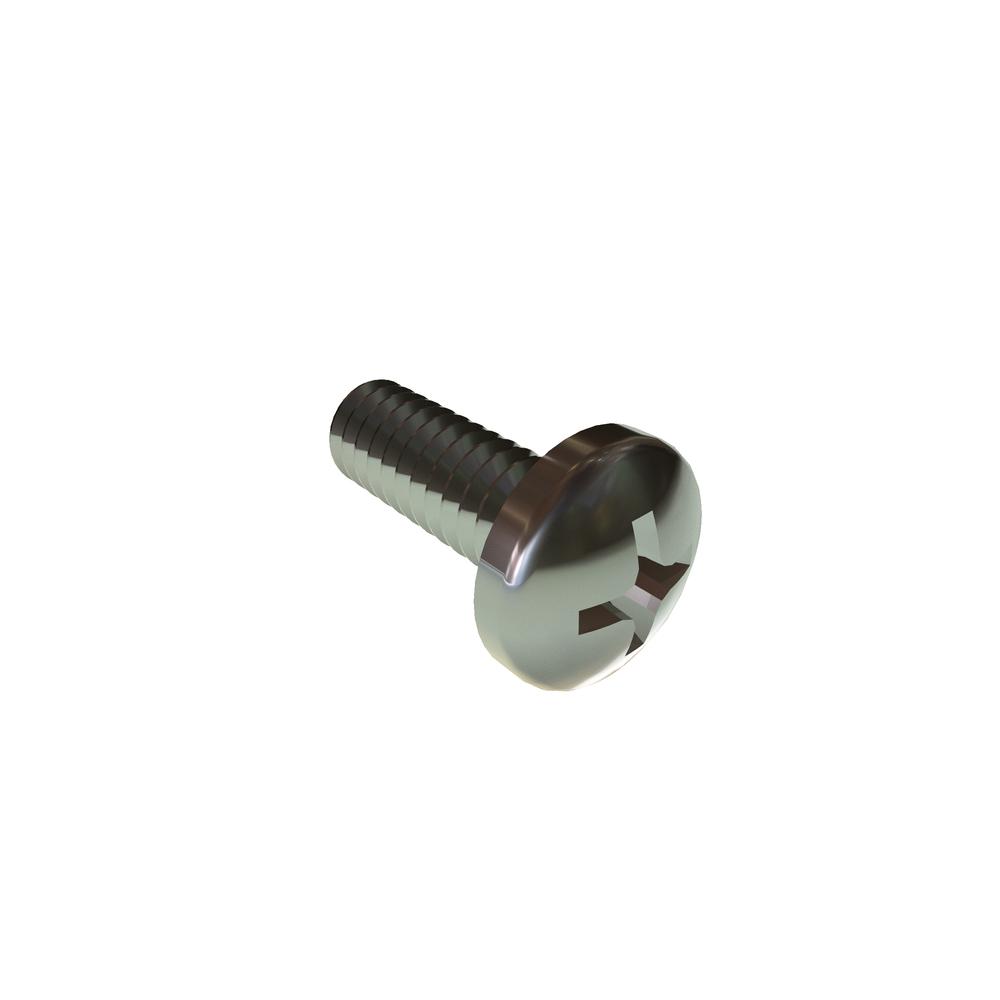

2C25PPMS/P
2-56 X 1/4 PH PAN PATCH SST RoHS
Alternate Codes: 96562A020
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.254 | $0.134 | $0.106 | $0.098 | $0.082 | Larger Quantities |
In Stock
| Thread Size | 2-56 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Head Type | Pan |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Drive Size | 1 |
| Penetration Depth (Min.) | 0.034in |
| Penetration Depth (Max.) | 0.052in |
| Recess Diameter | 0.097in |
| Head Radius (Min.) | 0.010in |
| Brand | VARIED |
| Additional Industry Cross Reference | 96562A020 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.167in |
| Head Diameter (Min.) | 0.155in |
| Head Height (Max.) | 0.062in |
| Head Height (Min.) | 0.053in |
