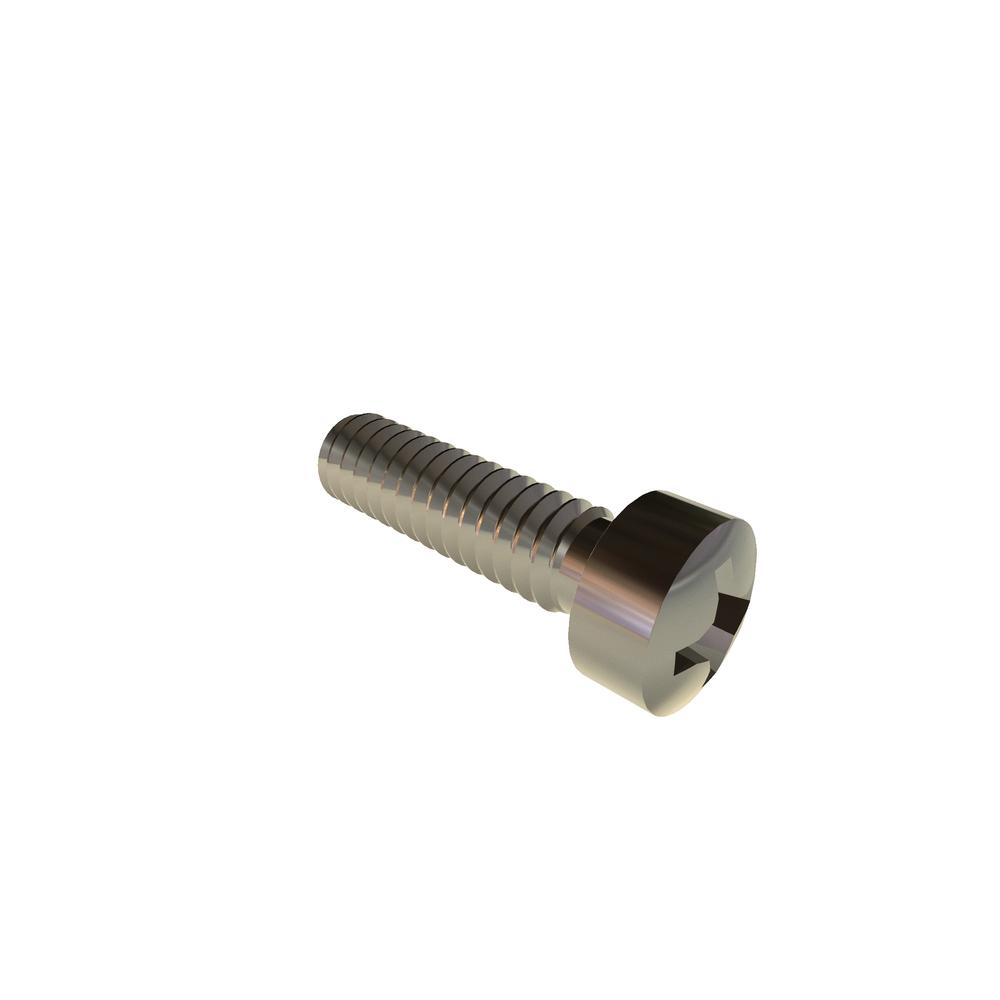

2C31PFIS
2-56 X 5/16 PHIL FILL SST RoHS
Alternate Codes: 91737A053
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.216 | $0.130 | $0.108 | $0.088 | $0.078 | Larger Quantities |
In Stock
| Thread Size | Feb-56 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Head Type | Fillister |
| Drive Type | Phillips |
| Drive Size | #1 |
| Recess Diameter | 0.097in |
| Recess Depth (Min.) | 0.034in |
| Recess Depth (Max.) | 0.052in |
| Head Side Height (Min.) | 0.053in |
| Head Side Height (Max.) | 0.062in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91737A053 |
| Length | 0.31in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.140in |
| Head Diameter (Min.) | 0.124in |
| Head Height (Max.) | 0.083in |
| Head Height (Min.) | 0.066in |
