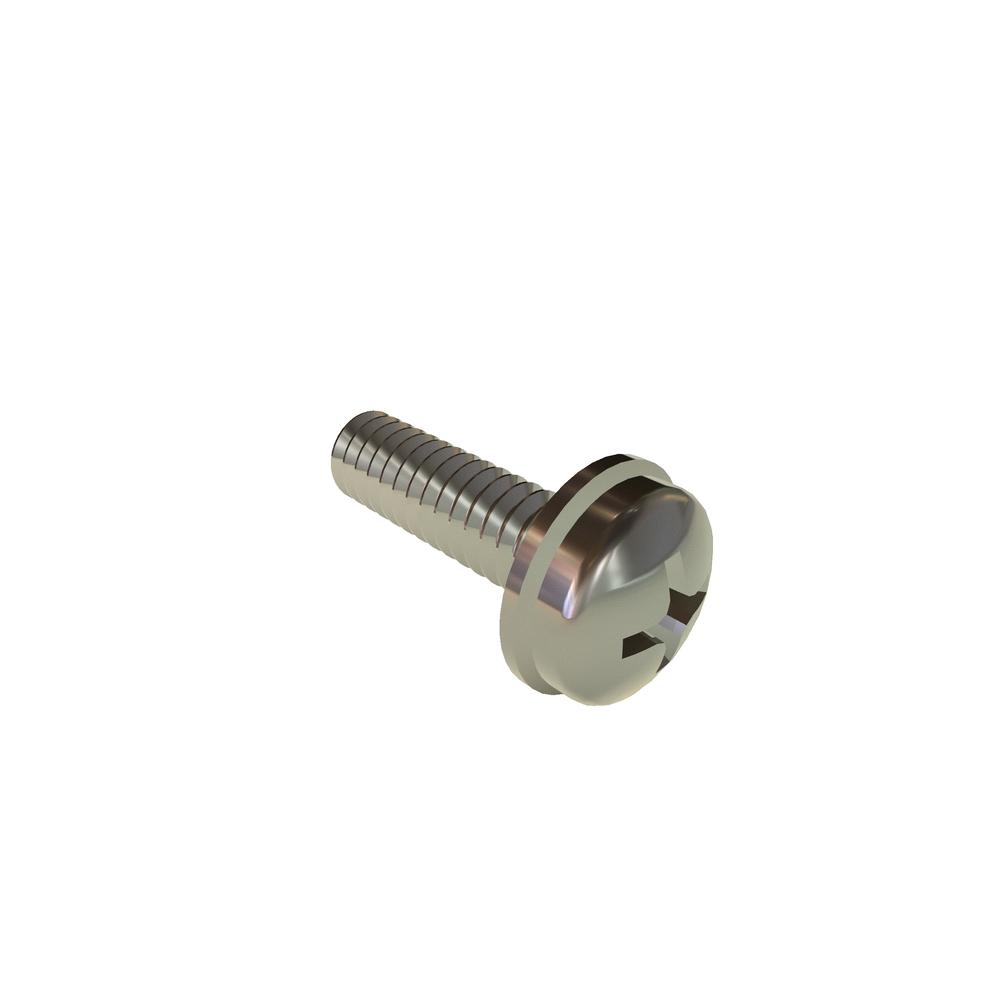

2C31PPIS
2-56 X 5/16 PHIL PAN INT SEMS SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs |
|---|
| $0.255 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 2-56 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.016in |
| Lock Washer Outside Diameter (Min.) | 0.175in |
| Lock Washer Outside Diameter (Max.) | 0.185in |
| Washer Type | Internal Tooth Lock Washer |
| Drive Size | 1 |
| Penetration Depth (Min.) | 0.034in |
| Penetration Depth (Max.) | 0.052in |
| Recess Diameter | 0.097in |
| Head Radius (Min.) | 0.010in |
| Brand | VARIED |
| Additional Industry Cross Reference | 95345A611 |
| Length | 5/16in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.167in |
| Head Diameter (Min.) | 0.155in |
| Head Height (Max.) | 0.062in |
| Head Height (Min.) | 0.053in |
| Lock Washer Thickness (Min.) | 0.010in |
