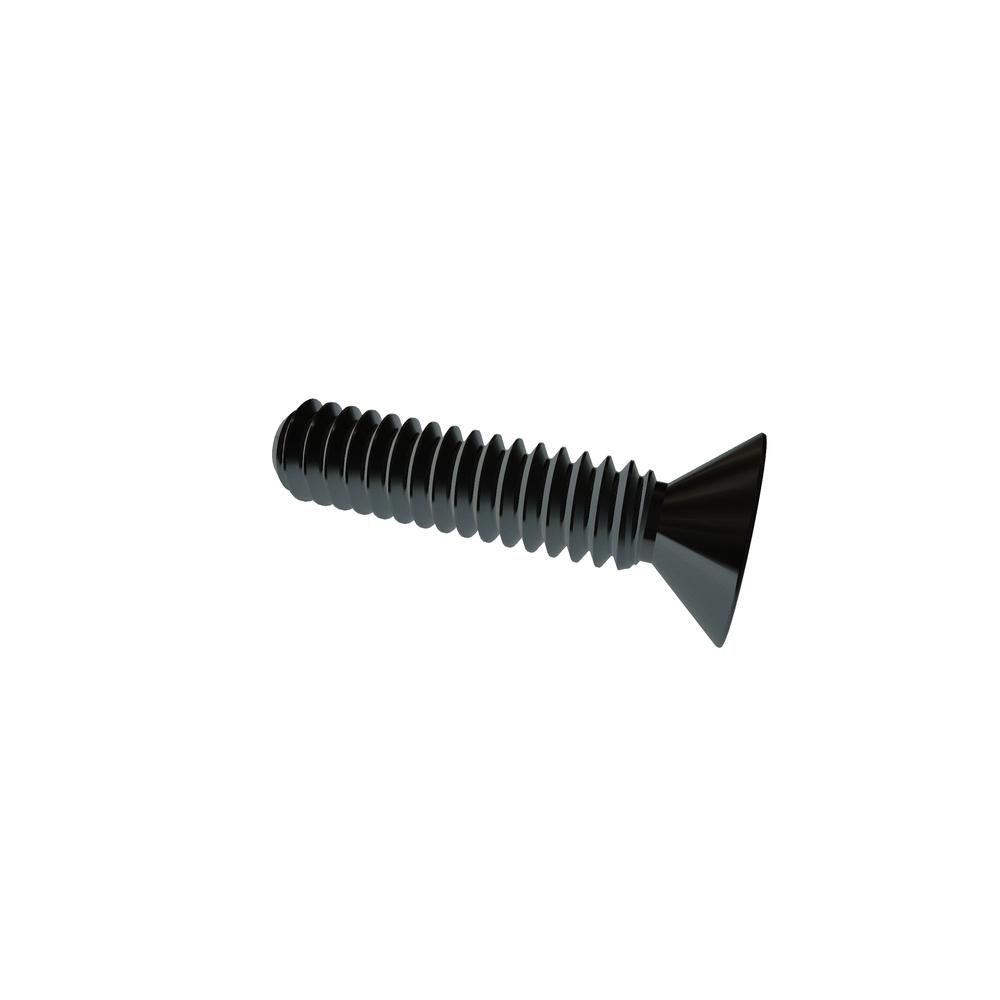

2C37PFMZR
2-56 X 3/8 PHIL FLAT STL ZN CR3
Alternate Codes: 90273A065
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 2-56 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.096in |
| Head Height | 0.051in |
| Recess Depth (Min.) | 0.040in |
| Recess Depth (Max.) | 0.056in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90273A065 92703A109 |
| Length | 0.37in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.162in |
| Head Diameter (Min.) | 0.144in |
