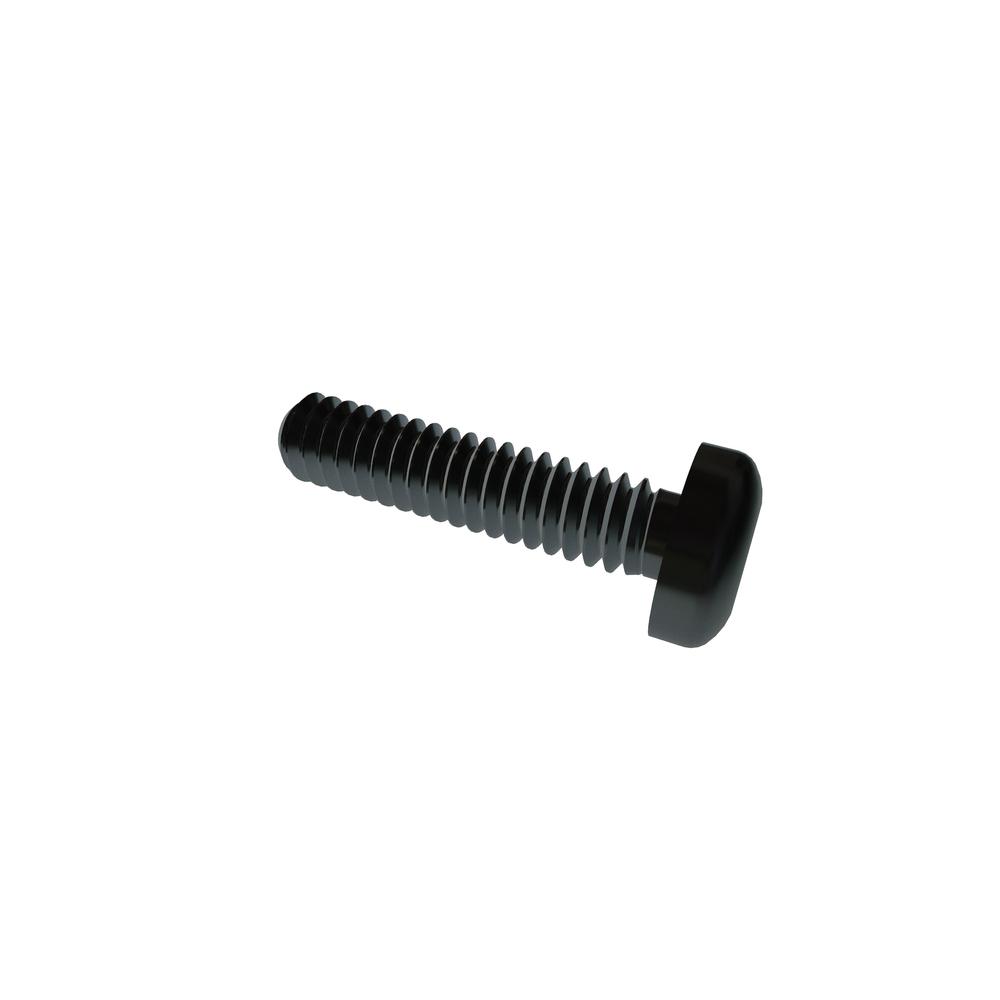

Image for reference purposes only. Actual product may vary.
2C37XPMZR
2-56 X 3/8 TORX PAN STL ZN CR3
Alternate Codes: 90022A096
2-56 X 3/8 TORX T-8 Pan Head Steel Zinc Plated RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 0.37in |
| Thread Size | 2-56 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Drive Type | Torx |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Head Type | Pan |
| Drive Size | T7 |
| Recess Diameter | 0.078in |
| Head Radius (Min.) | 0.010in |
| Recess Depth (Min.) | 0.030in |
| Recess Depth (Max.) | 0.035in |
| Additional Industry Cross Reference | 90022A096 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.167in |
| Head Diameter (Min.) | 0.155in |
| Head Height (Max.) | 0.062in |
| Head Height (Min.) | 0.053in |
