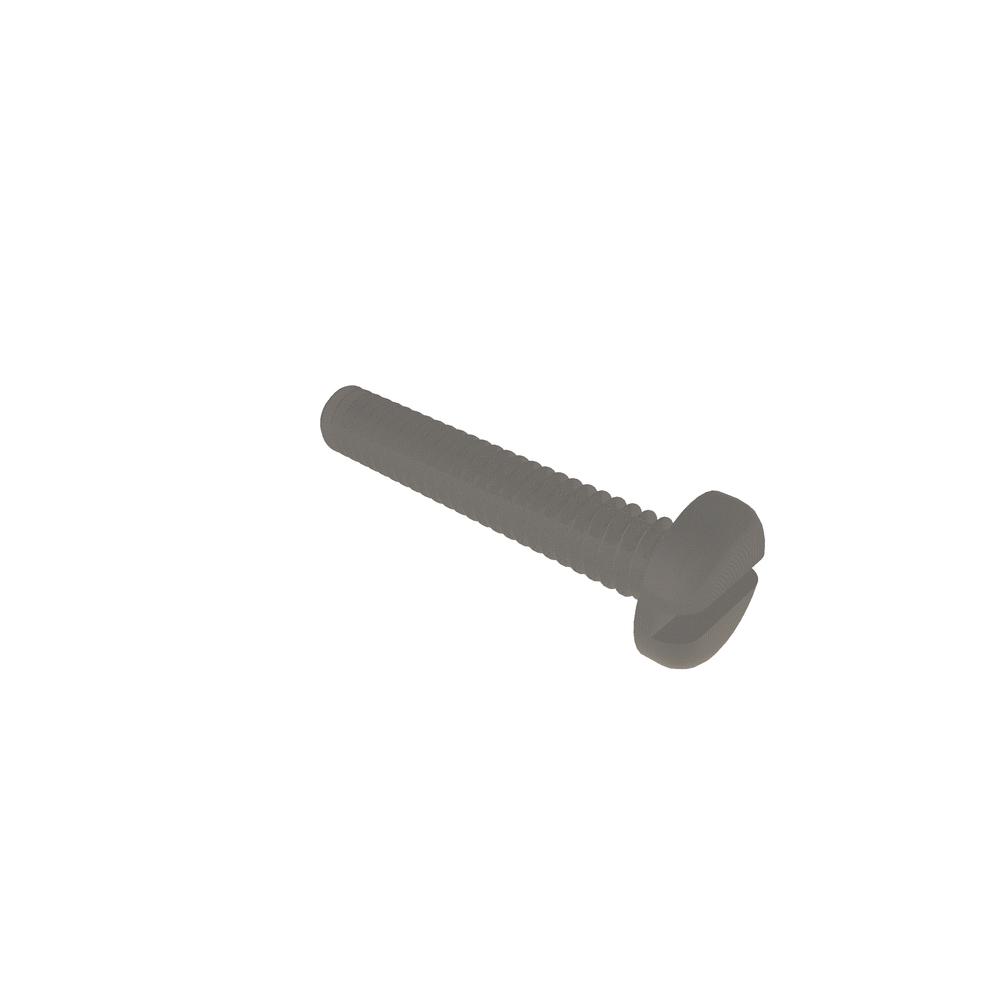

2C50SPMN
2-56 X 1/2 SLOT PAN HD NYL
Alternate Codes: 059242, 2805-1304-08, 379-906545-00
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.206 | $0.124 | $0.103 | $0.084 | $0.074 | Larger Quantities |
In Stock
| Thread Size | 2-56 |
| Material | Nylon |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Head Type | Pan |
| Drive Type | Slotted |
| Head Radius (Min.) | 0.035in |
| Slot Depth (Min.) | 0.022in |
| Slot Depth (Max.) | 0.031in |
| Slot Width (Min.) | 0.023in |
| Slot Width (Max.) | 0.031in |
| Brand | VARIED |
| Additional Industry Cross Reference | 92942A712 |
| Length | 0.50in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.167in |
| Head Diameter (Min.) | 0.155in |
| Head Height (Max.) | 0.053in |
| Head Height (Min.) | 0.045in |
