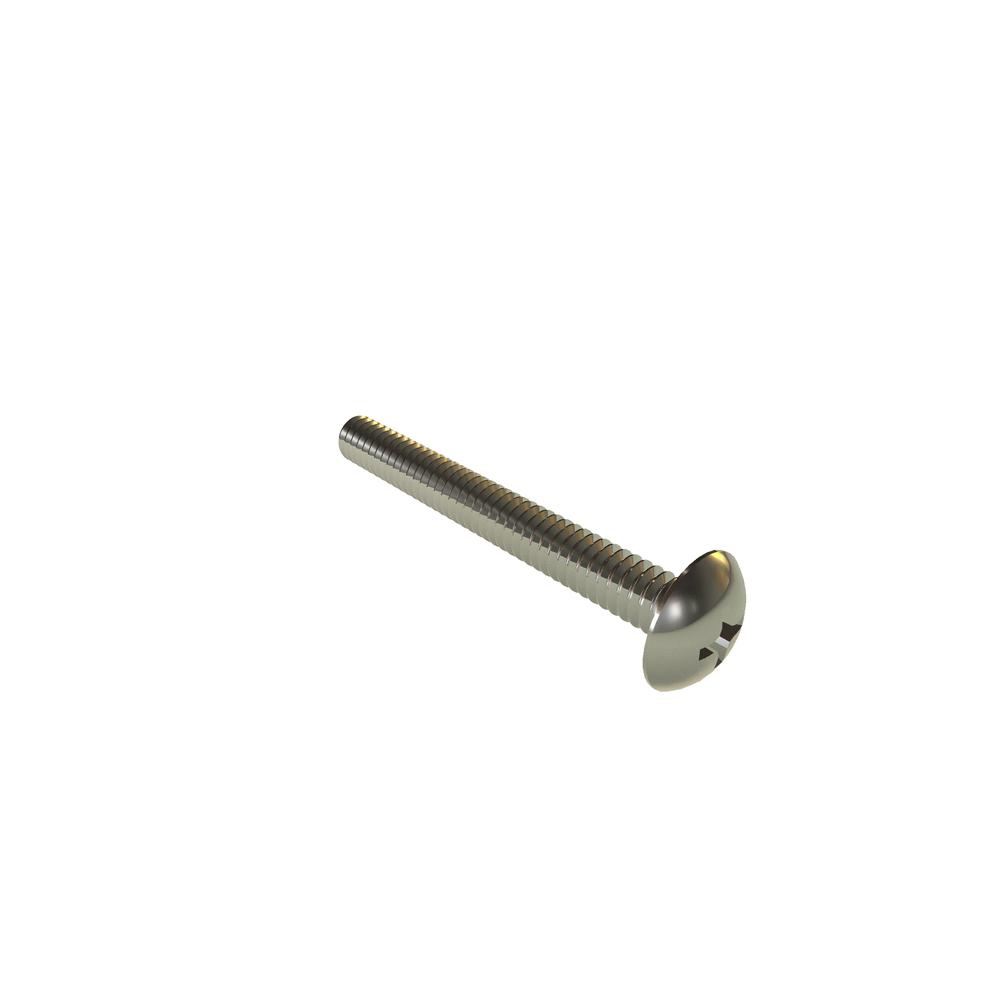

2C75PTMS
2-56 X 3/4 PHIL TRUSS SST RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 2-56 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Head Type | Truss |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.097in |
| Head Radius (Min.) | 0.129in |
| Recess Depth (Min.) | 0.034in |
| Recess Depth (Max.) | 0.052in |
| Brand | VARIED |
| Length | 0.75in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.194in |
| Head Diameter (Min.) | 0.180in |
| Head Height (Max.) | 0.053in |
| Head Height (Min.) | 0.044in |
