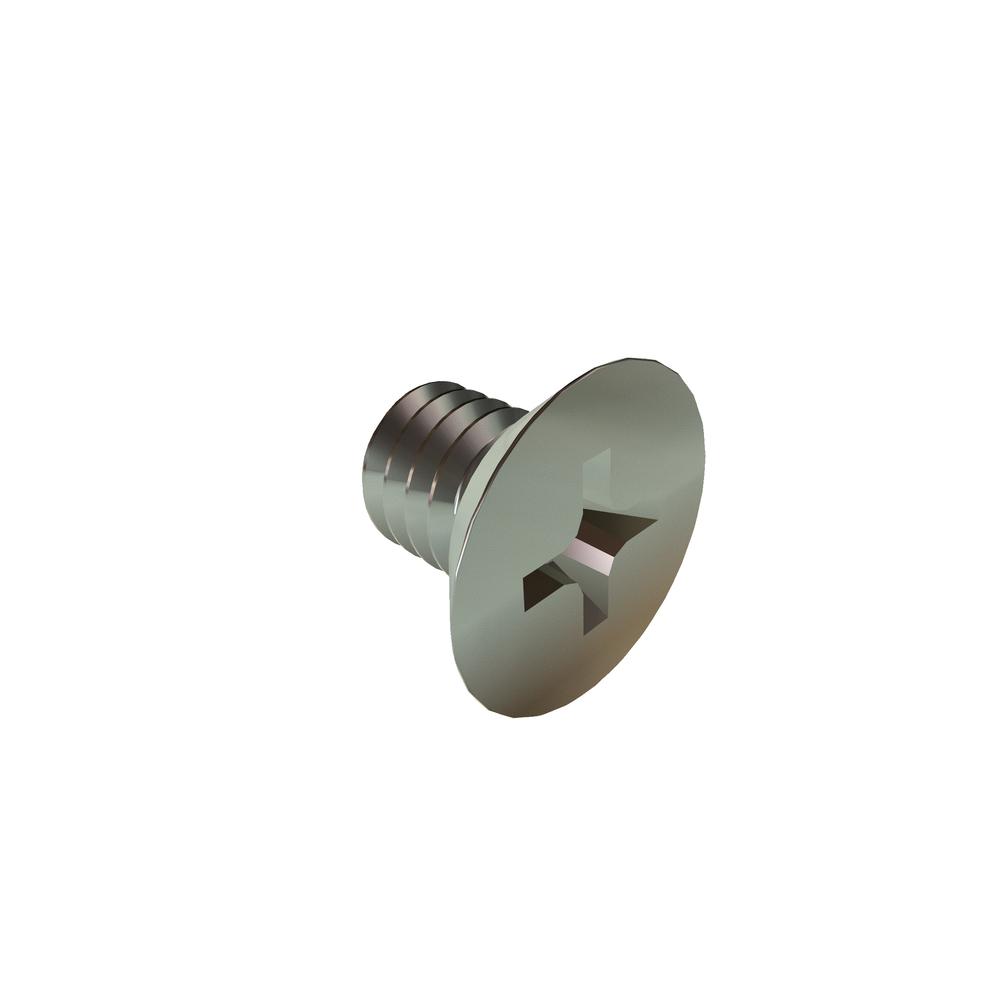

Image for reference purposes only. Actual product may vary.
2F12PFUS
2-64 X 1/8 PHIL FLAT U/C SST RoHS
Alternate Codes: N/A
2-64 X 1/8 Phillips FLAT Head Undercut Stainless Steel RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 0.12in |
| Thread Size | 2-64 |
| Finish | Plain |
| Material | Stainless Steel |
| Drive Type | Phillips |
| Head Height (Min.) | 0.028in |
| Head Height (Max.) | 0.036in |
| Drive Size | 1 |
| Recess Depth (Max.) | 0.049in |
| Recess Depth (Min.) | 0.033in |
| RoHS | Compliant |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.086in |
| Head Type | Flat Undercut |
| Recess Diameter | 0.088in |
| Brand | VARIED |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.162in |
| Head Diameter (Min.) | 0.144in |
