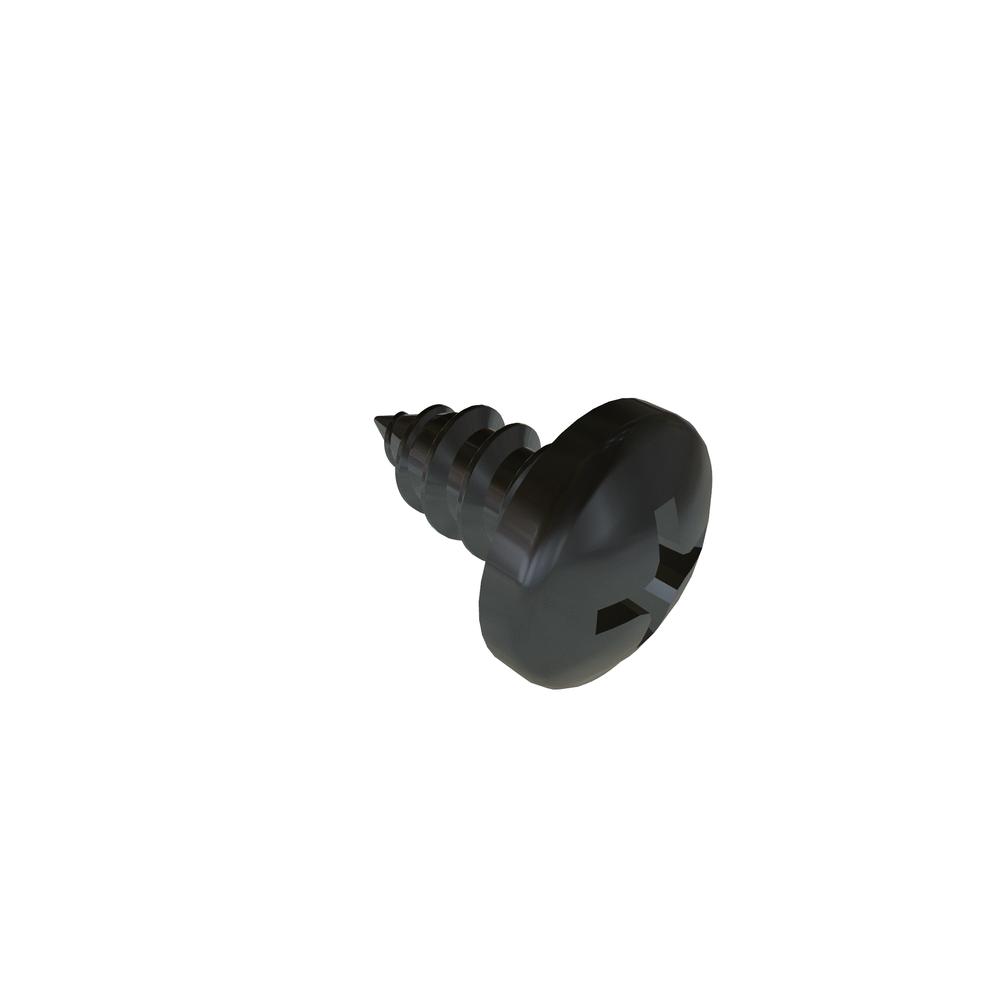

2N18PPAZR
2 X 3/16 PHIL PAN T-AB STL ZN CR3
Alternate Codes: 60146, 90190A073
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 2-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Nominal Diameter | 0.086in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.097in |
| Head Radius (Min.) | 0.010in |
| Recess Depth (Min.) | 0.034in |
| Recess Depth (Max.) | 0.052in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90190A073 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.167in |
| Head Diameter (Min.) | 0.155in |
| Head Height (Max.) | 0.062in |
| Head Height (Min.) | 0.053in |
