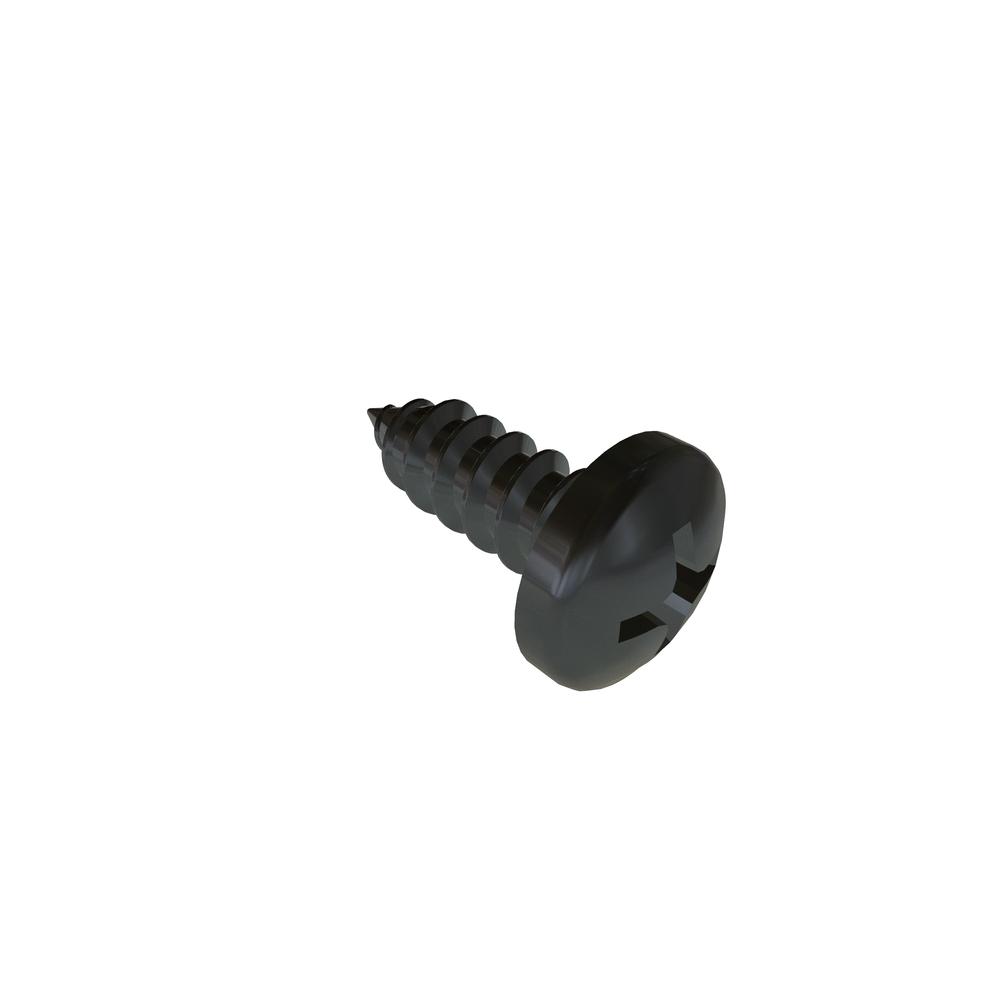

Image for reference purposes only. Actual product may vary.
2N25PPAZR
2 X 1/4 PHIL PAN T-AB STL ZN CR3
Alternate Codes: 2N25PPAht, 90190A075, SGIS-9101054
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.181 | $0.109 | $0.091 | $0.074 | $0.065 | Larger Quantities |
In Stock
Maximum stock already in cart
| Brand | VARIED |
| Head Diameter (Min.) | 0.155in |
| Head Diameter (Max.) | 0.167in |
| Thread Size | 2-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.098in |
| Recess Depth (Min.) | 0.034in |
| Recess Depth (Max.) | 0.052in |
| Head Height (Max.) | 0.062in |
| Nominal Diameter | 0.086in |
| Head Radius (Min.) | 0.010in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Height (Min.) | 0.053in |
| Additional Industry Cross Reference | 90190A075 |
