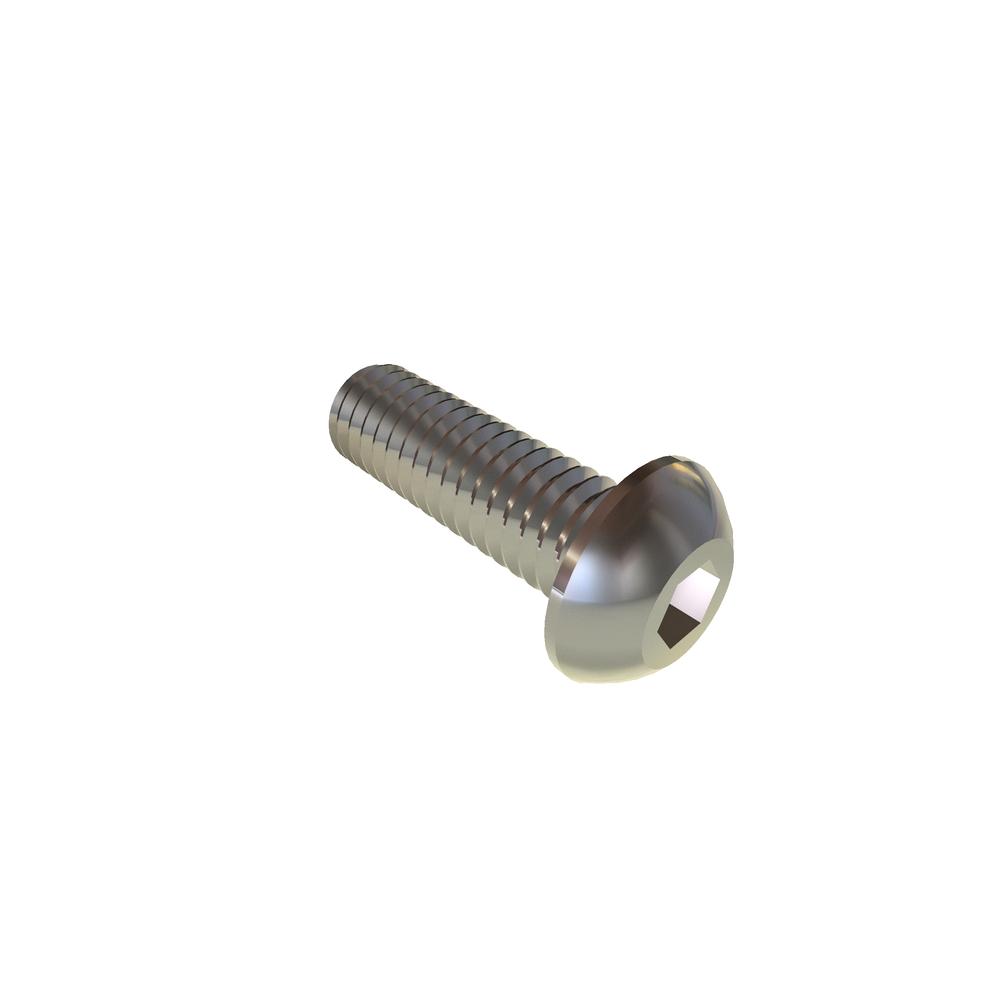

31C100BHCS
5/16-18 X 1 BUT SOC SST RoHS
Alternate Codes: 40035
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.624 | $0.397 | $0.364 | $0.336 | $0.284 | Larger Quantities |
In Stock
| Thread Size | 5/16-18 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.3125in |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 0.343in |
| Fillet Transition Diameter (Max.) | 0.353in |
| Head Side Height (Ref.) | 0.031in |
| Key Engagement | 0.105in |
| Brand | VARIED |
| Additional Industry Cross Reference | 92949A582 |
| Length | 1in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.547in |
| Head Diameter (Min.) | 0.527in |
| Head Height (Max.) | 0.166in |
| Head Height (Min.) | 0.152in |
| Hex Socket Size | 0.188in |
