31C100HHD5R
5/16-18 X 1 HX HD GR 5 ZN CR3
Alternate Codes: N/A

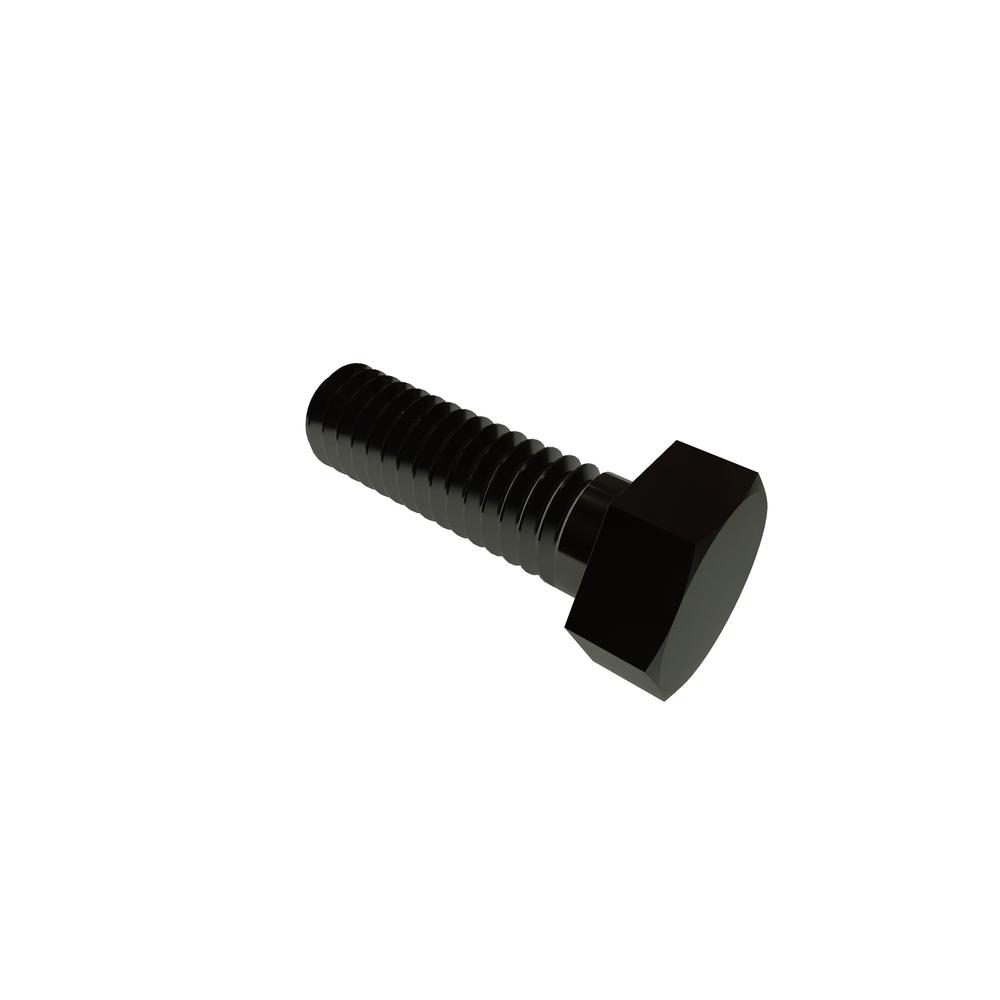

5/16-18 X 1 HEX Head Partial Thread Grade 5 steel zinc plate
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.382 | $0.201 | $0.159 | $0.147 | $0.123 | Larger Quantities |
In Stock
| Thread Size | 5/16-18 |
| Material | Steel |
| Finish | Zinc Clear |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Head Type | Hex |
| Body Diameter (Min.) | 0.298in |
| Nominal Thread Size | 0.313in |
| Grade | 5 |
| Brand | VARIED |
| Length | 1.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.1 |
| Body Diameter (Max.) | 0.324in |
| Head Height (Max.) | 0.235in |
| Head Height (Min.) | 0.195in |
| Width Across Flat (Max.) | 0.500in |
| Width Across Flat (Min.) | 0.484in |
