31C125HHD2R/F
5/16-18 X 1 1/4 HX HD F/T GR 2 ZN
Alternate Codes: 91309A585

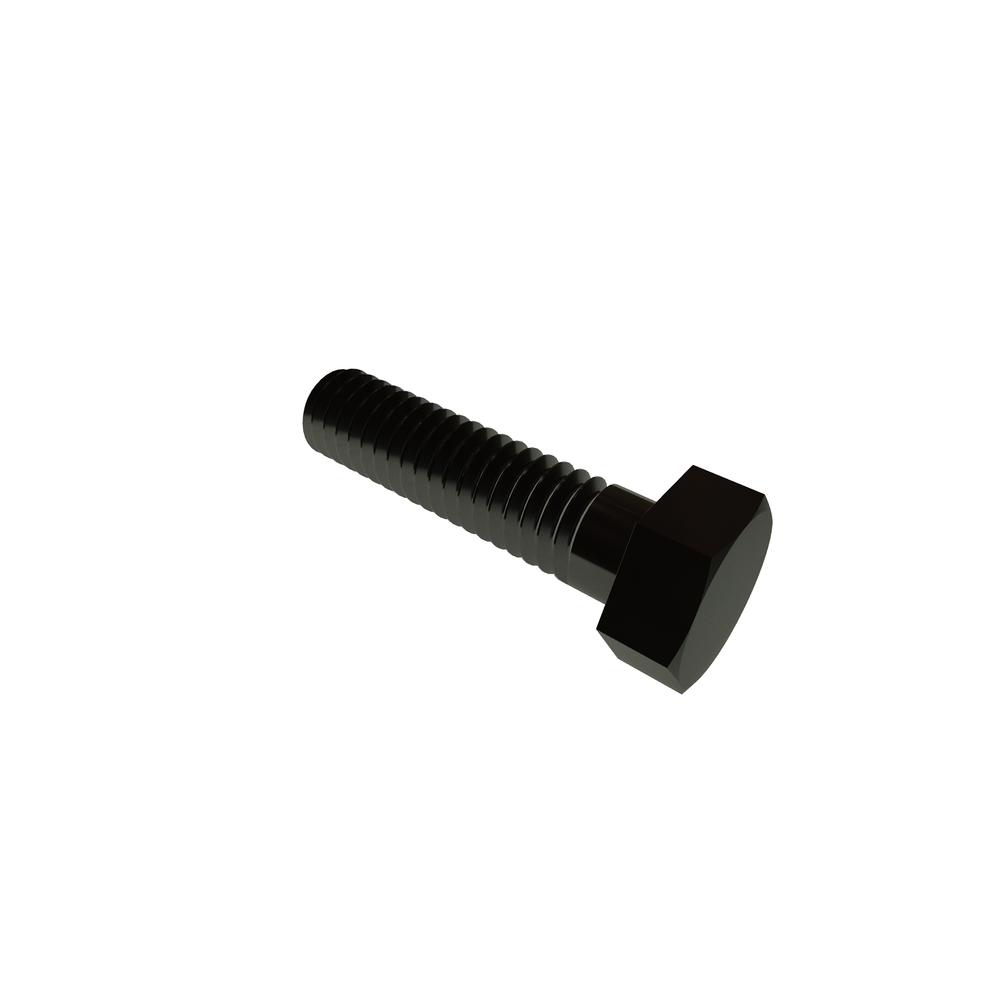

5/16-18 X 1 1/4 Hex Head Full Thread Grade 2 steel Zinc plate
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 5/16-18 |
| Material | Steel |
| Finish | Zinc Clear |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Head Type | Hex |
| Body Diameter (Min.) | 0.298in |
| Nominal Thread Size | 0.313in |
| Grade | 2 |
| Brand | VARIED |
| Additional Industry Cross Reference | 91309A585 |
| Length | 1.25in |
| Meets (Standard) | ASME B18.2.1 |
| Body Diameter (Max.) | 0.324in |
| Head Height (Max.) | 0.235in |
| Head Height (Min.) | 0.195in |
| Width Across Flat (Max.) | 0.500in |
| Width Across Flat (Min.) | 0.484in |
