31C200CARS

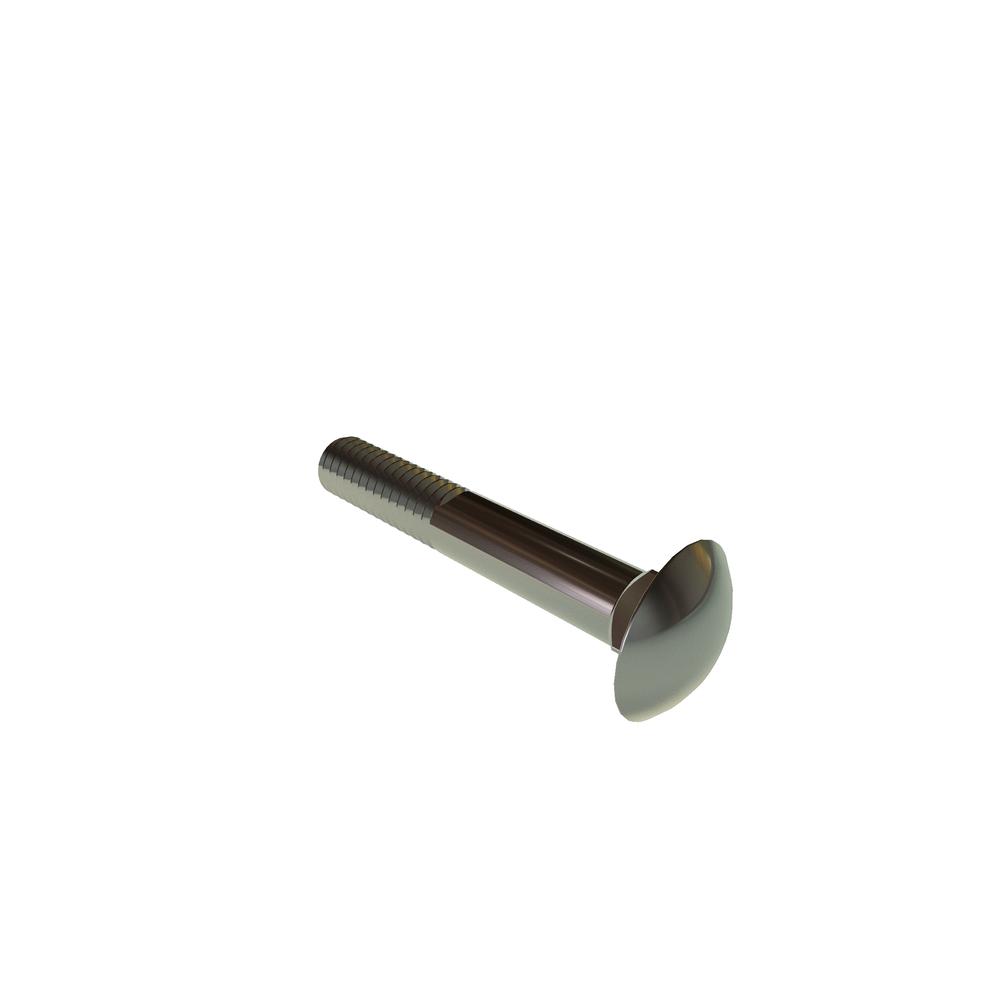

5/16-18 X 2 CARRIAGE BOLT SST RoHS
Alternate Codes: 92356A591
5/16-18 X 2 CARRIAGE BOLT Stainless Steel RoHS3
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 5/16-18 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.313in |
| Body Diameter (Min.) | 0.272in |
| Grade | Other |
| Corner radius | 0.031in |
| Square Depth (Min.) | 0.156in |
| Square Depth (Max.) | 0.187in |
| Square Width (Min.) | 0.307in |
| Square Width (Max.) | 0.324in |
| Fillet Radius | 0.031in |
| Brand | VARIED |
| Type | Carriage Bolt |
| Additional Industry Cross Reference | 92356A591 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.5 |
| Body Diameter (Max.) | 0.324in |
| Head Diameter (Max.) | 0.719in |
| Head Diameter (Min.) | 0.688in |
| Head Height (Max.) | 0.176in |
| Head Height (Min.) | 0.156in |
| Thread Length | 0.875in |
| Total Length | 2.00in |
