31C250CARZB

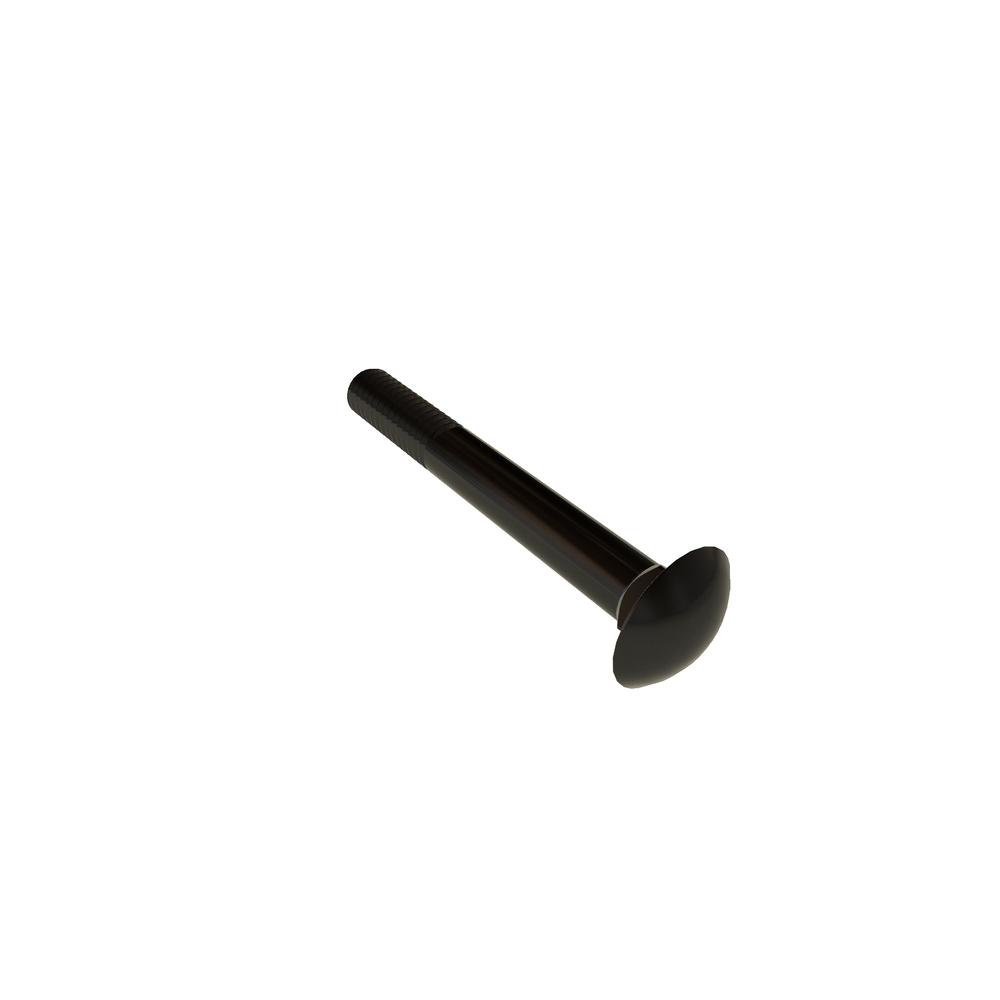

5/16-18 X 2 1/2 CARRIAGE BOLT STL BLK
Alternate Codes: N/A
5/16-18 X 2 1/2 CARRIAGE BOLT Steel Black oxide
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|
| $0.859 | $0.473 | $0.394 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 5/16-18 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.313in |
| Body Diameter (Min.) | 0.272in |
| Grade | Other |
| Corner radius | 0.031in |
| Square Depth (Min.) | 0.156in |
| Square Depth (Max.) | 0.187in |
| Square Width (Min.) | 0.307in |
| Square Width (Max.) | 0.324in |
| Fillet Radius | 0.031in |
| Brand | VARIED |
| Type | Carriage Bolt |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.5 |
| Body Diameter (Max.) | 0.324in |
| Head Diameter (Max.) | 0.719in |
| Head Diameter (Min.) | 0.688in |
| Head Height (Max.) | 0.176in |
| Head Height (Min.) | 0.156in |
| Thread Length | 0.875in |
| Total Length | 2.50in |
